5.4.2 Dimensions for the drill hole
De󹪝nition

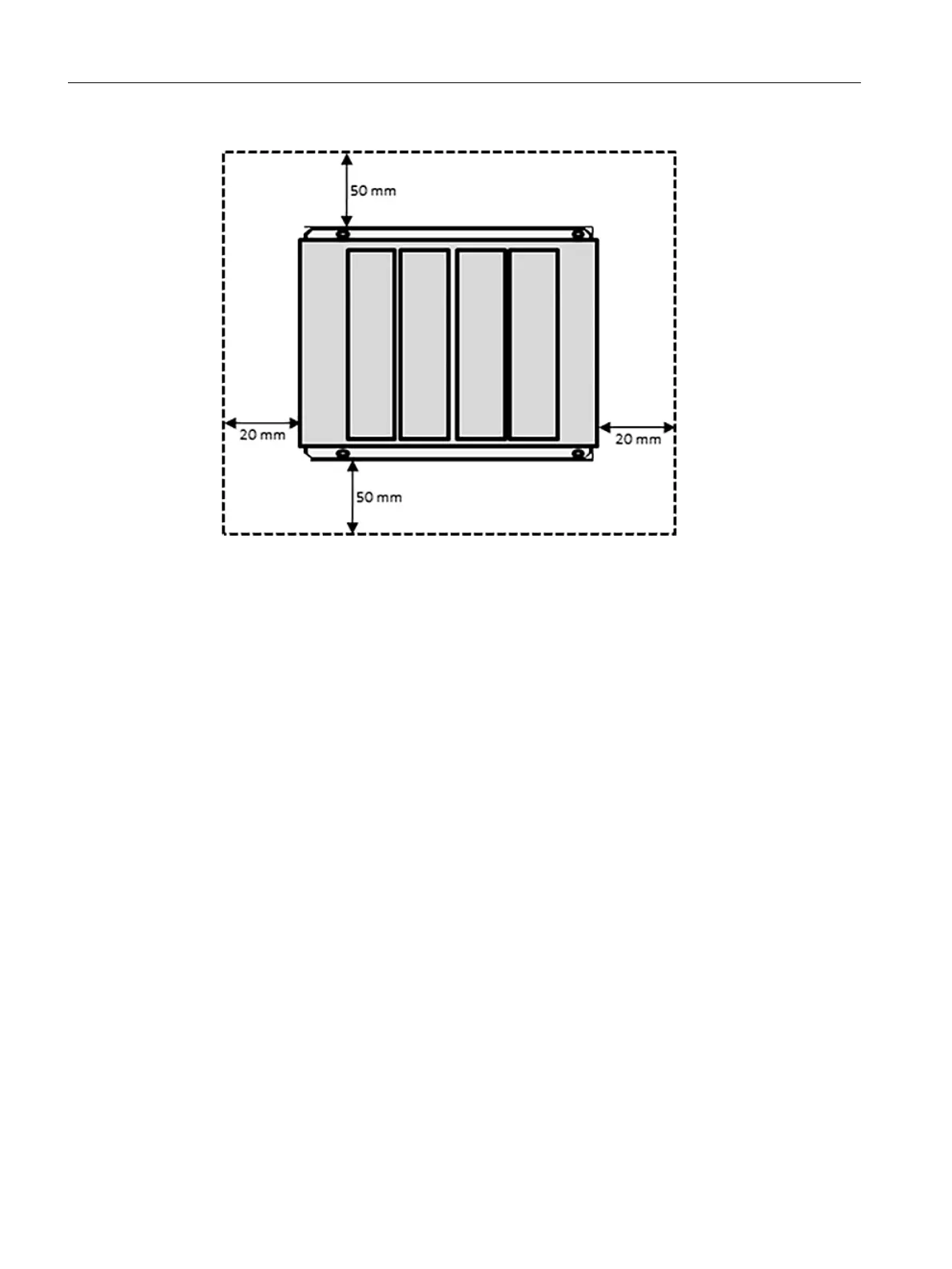

The dimensions for the holes depend on the rack. The rack has four holes for 󹪝xing screws.
Description
All drill holes are equidistant from the edges.
The following dimensions for the holes are available:
Installation
5.4 Basics for mounting
CN 4100 Communication System
24 Equipment Manual, 10/2021, A5E50871363-AA
