Dimension drawing
A
A.1 Dimensions of the rack

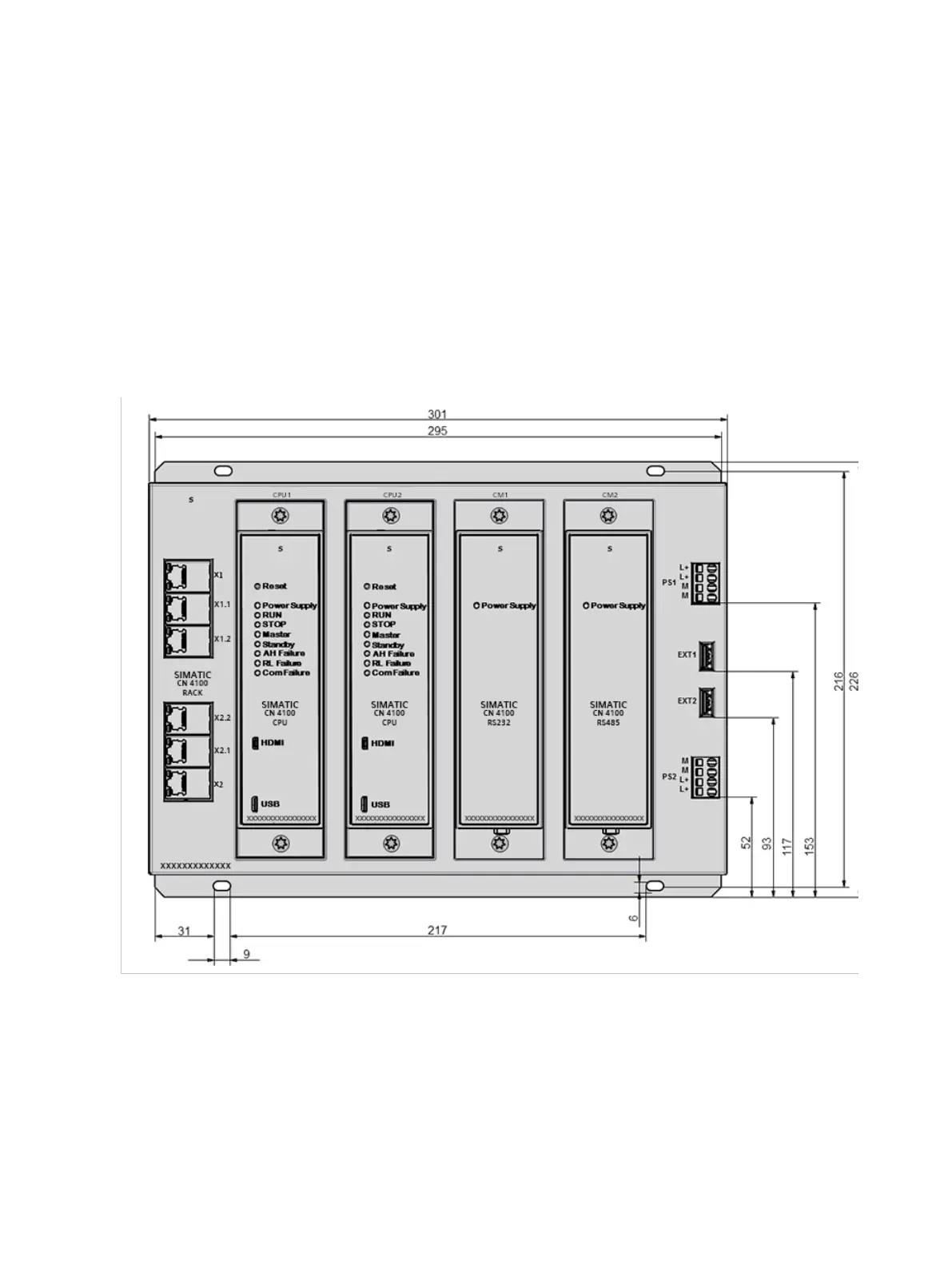

The following gures show the dimensions of the rack with four plugged-in modules (two CPU
modules and two dierent communications modules).
Rack from the front
