Note
Before installing controllers with oating reference potential, make the relevant settings on the
rack.
Result
The rack is mounted and screwed to the base.
5.6.3 Grounding the rack with a cable
Requirement
• The basics for protective grounding are known.
• The rack is mounted and screwed to the base.
• The cable for grounding has a cross-section >=1.0 mm².
Procedure

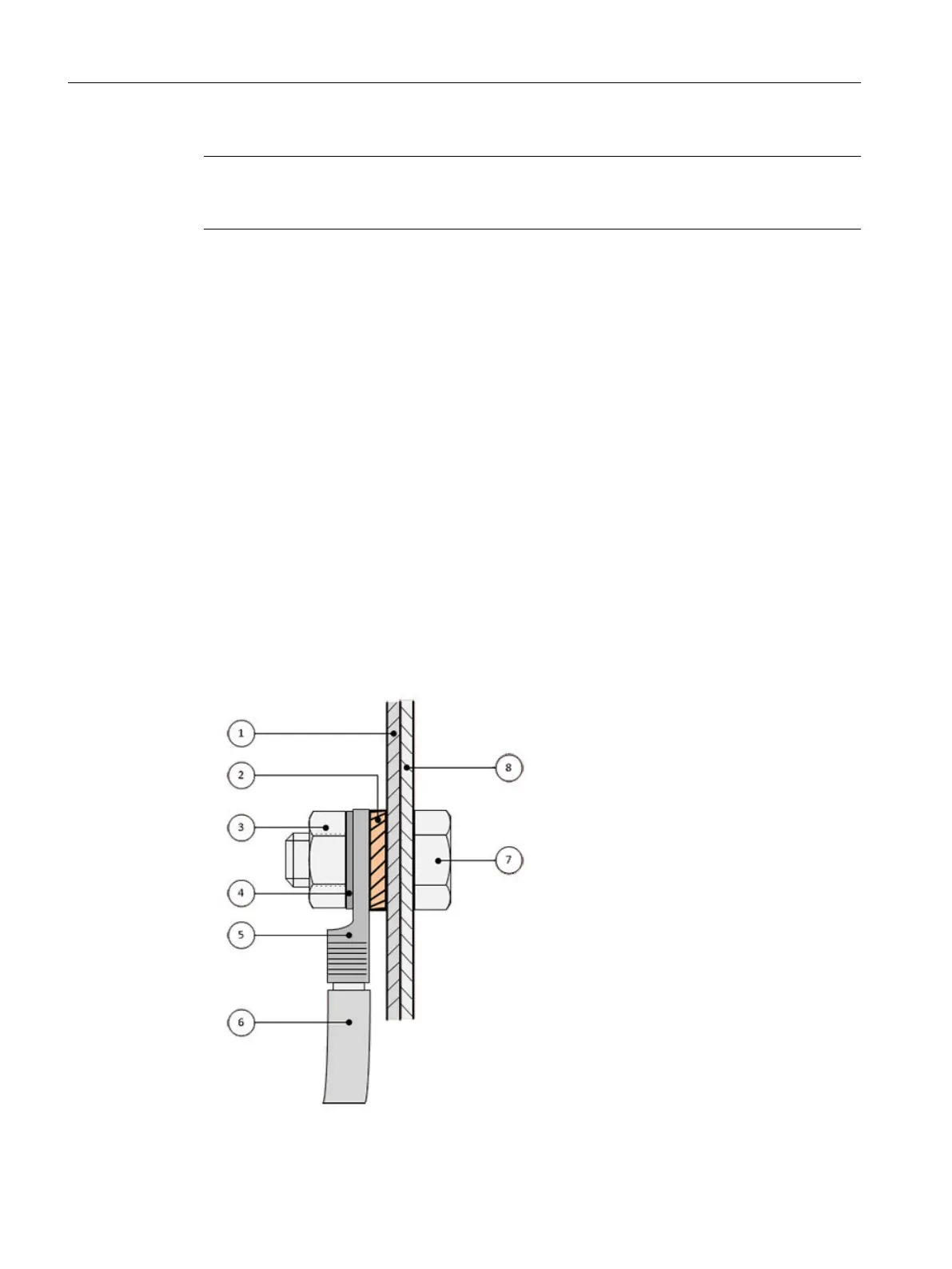

Mount a cable with a cable lug on one of the xing screws of the rack. Note the following setup
