Data connections
B
B.1 Connections of the rack
B.1.1 USB 3.0 ports of the rack
De󹪝nition
The USB 3.0 port is required for the setup and maintenance of the communication system.
Description
The rack is equipped with two USB 3.0 ports.

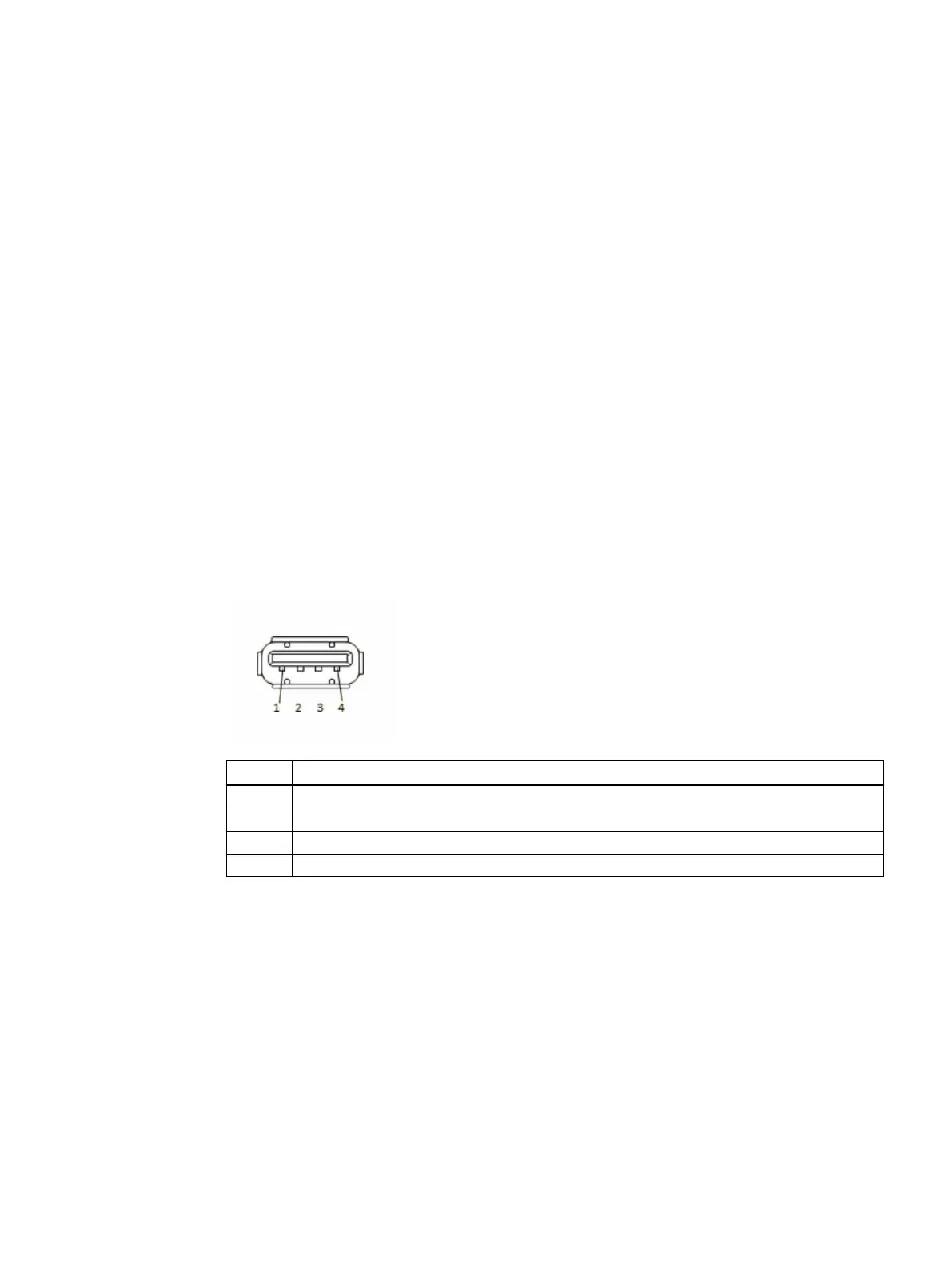

Design
Pin Description
1 USB_P5V_fused (O)
2 USB_D0M (I/O)
3 USB_D0P (I/O)
4 USB_GND
B.1.2 Ethernet ports of the rack
De󹪝nition
The RJ45 connection (Ethernet port) is required for the wired communication connection via
Ethernet.
