Design

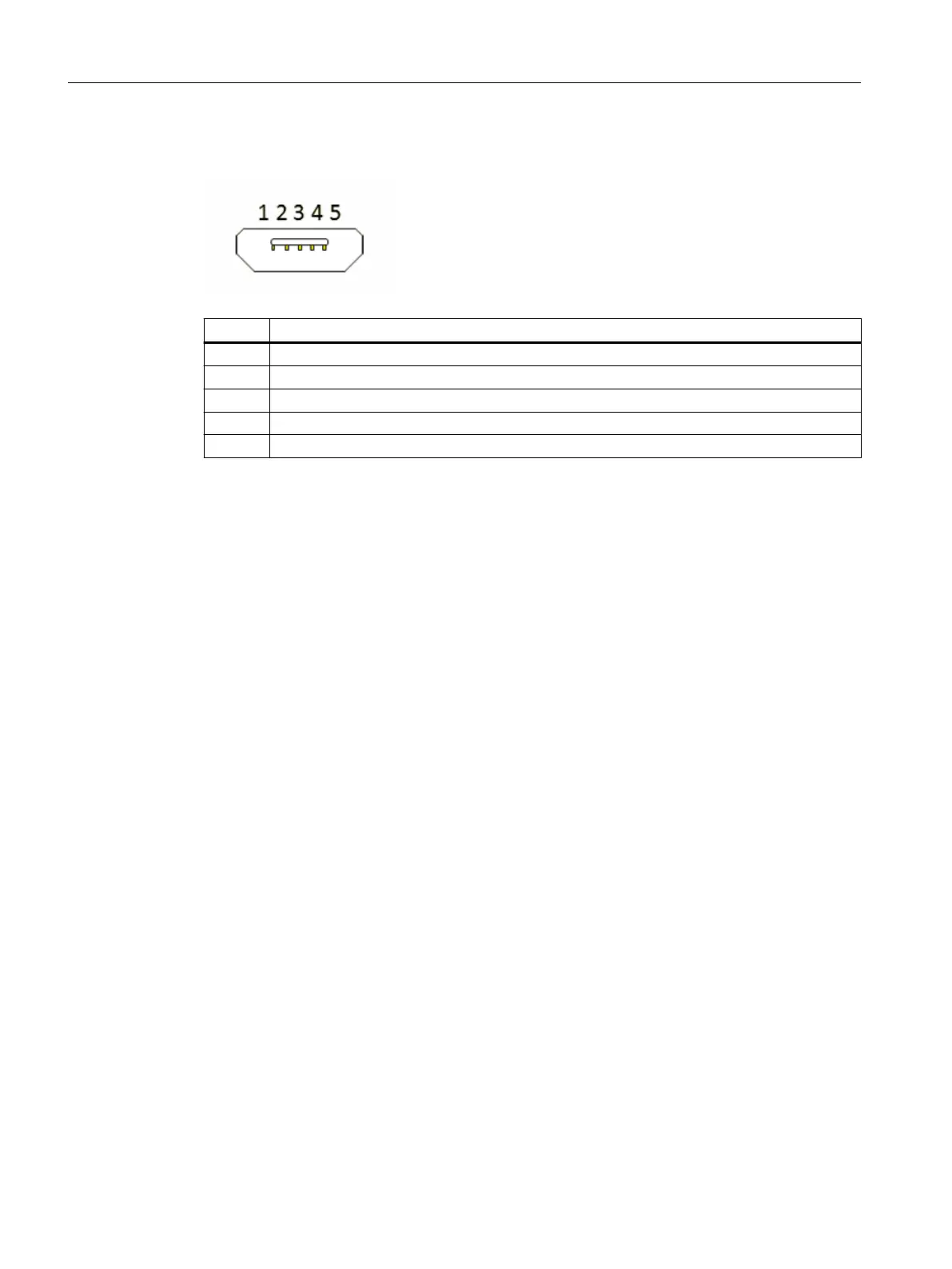

Pin Description
1 USB_P5V_fused (O)
2 USB_D0M (I/O)
3 USB_D0P (I/O)
4 Not connected
5 USB_GND
Data connections
B.2 Connections of the CPU module
