Connection examples for redundant I/Os
C.16 SM 421; DI 32 x DC 24 V, 6ES7 421–1BL00–0AB0
CPU 410 Process Automation/CPU 410 SMART
406 System Manual, 05/2017, A5E31622160-AC
SM 421; DI 32 x DC 24 V, 6ES7 421–1BL00–0AB0

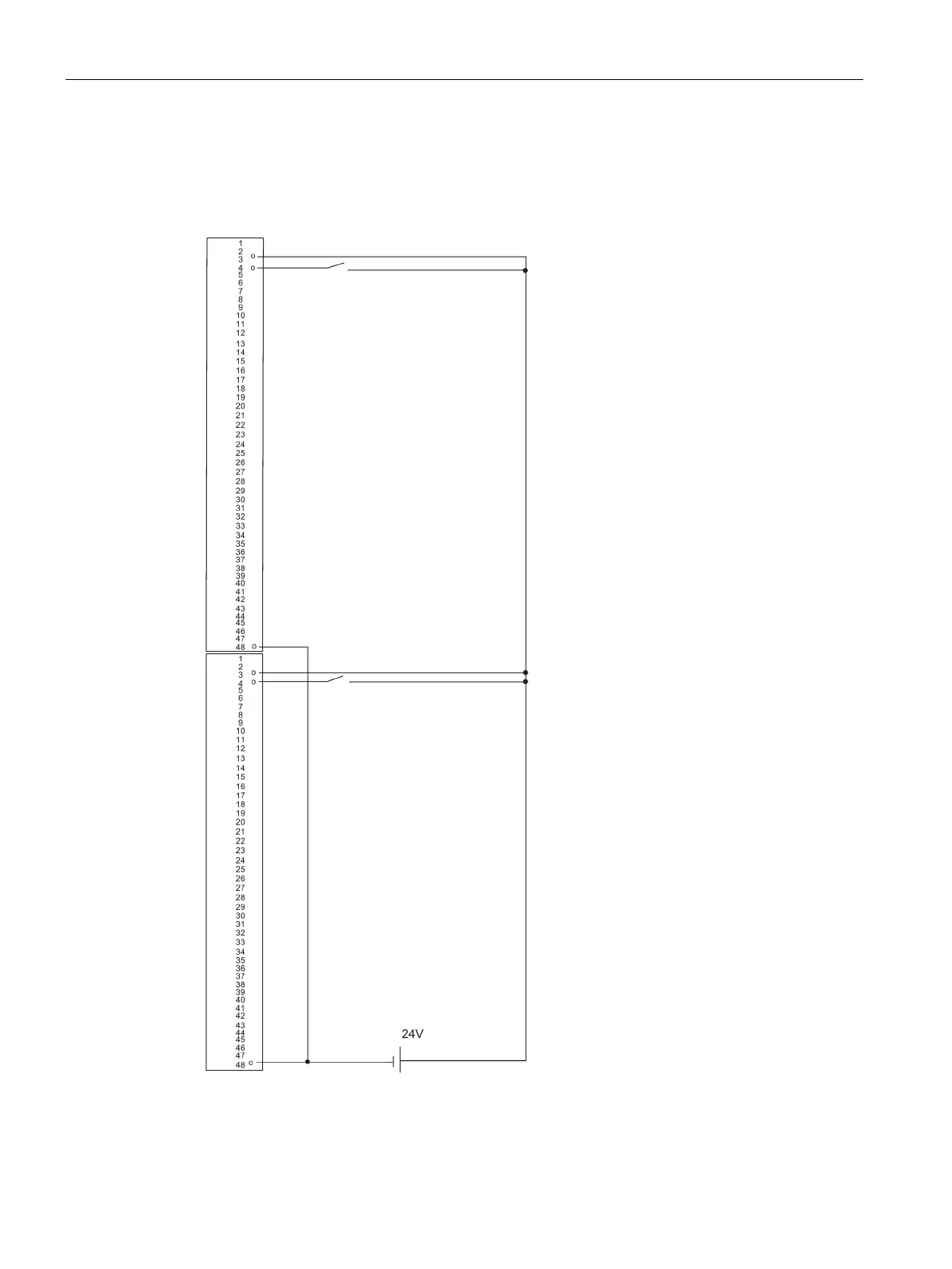

The diagram below shows the connection of two redundant encoders to two
SM 421; D1 32 x 24 V. The encoders are connected to channel 0.
Figure C-14 Example of an interconnection with SM 421; DI 32 x 24 V
