Connection examples for redundant I/Os
C.20 SM 322; DO 8 x AC 230 V/2 A, 6ES7 322–1FF01–0AA0
CPU 410 Process Automation/CPU 410 SMART
410 System Manual, 05/2017, A5E31622160-AC
SM 322; DO 8 x AC 230 V/2 A, 6ES7 322–1FF01–0AA0

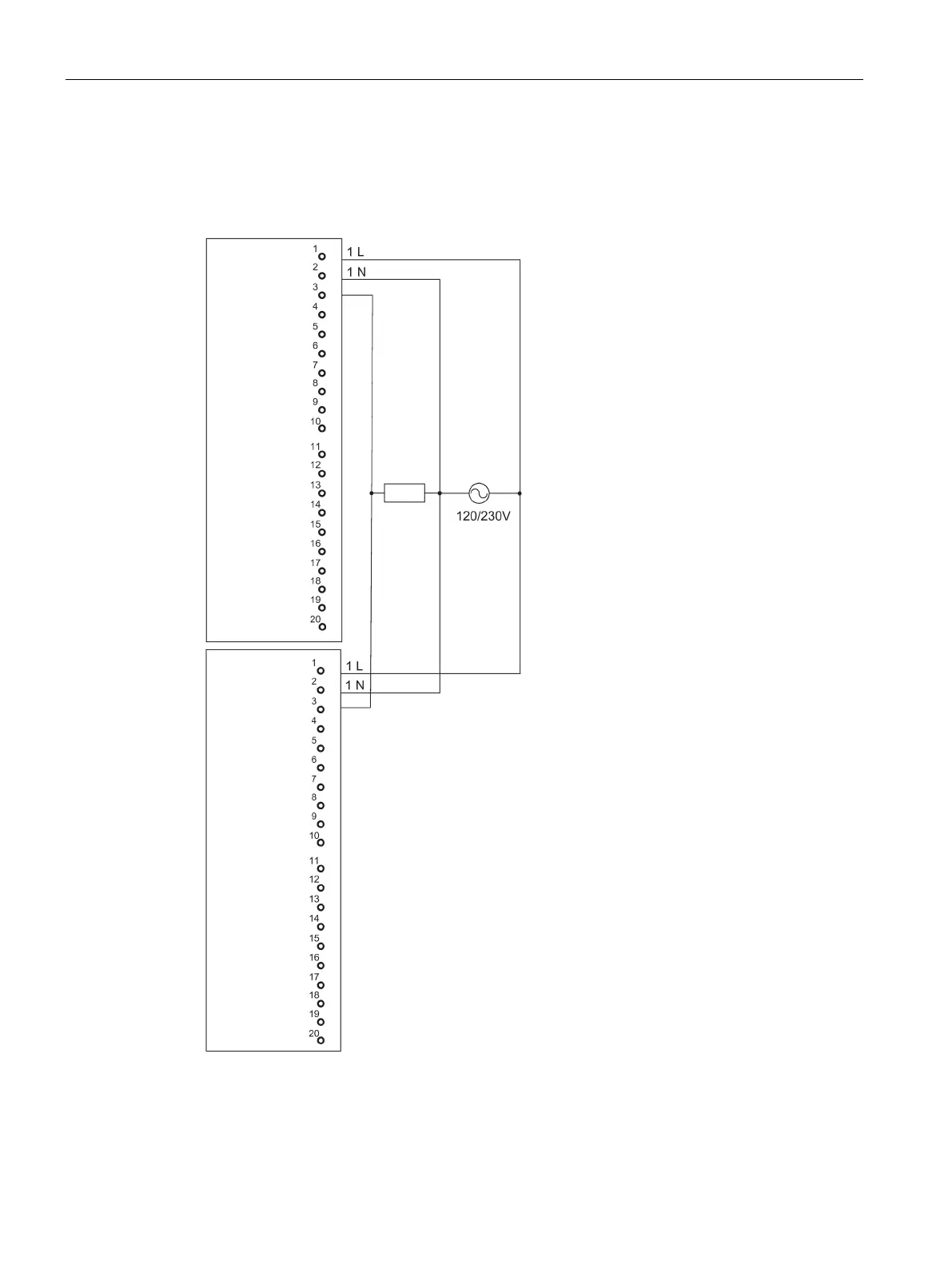

The diagram below shows the connection of an actuator to two SM 322; DO 8 x AC 230 V/2
A. The actuator is connected to channel 0.
Figure C-18 Example of an interconnection with SM 322; DO 8 x AC 230 V/2 A
