Connection examples for redundant I/Os
C.33 AI 6xTC 16Bit iso, 6ES7331-7PE10-0AB0
CPU 410 Process Automation/CPU 410 SMART
System Manual, 05/2017, A5E31622160-AC
423
C.33
AI 6xTC 16Bit iso, 6ES7331-7PE10-0AB0
The figure below shows the connection of a thermocouple to two redundant SM 331 AI 6xTC
16Bit iso.

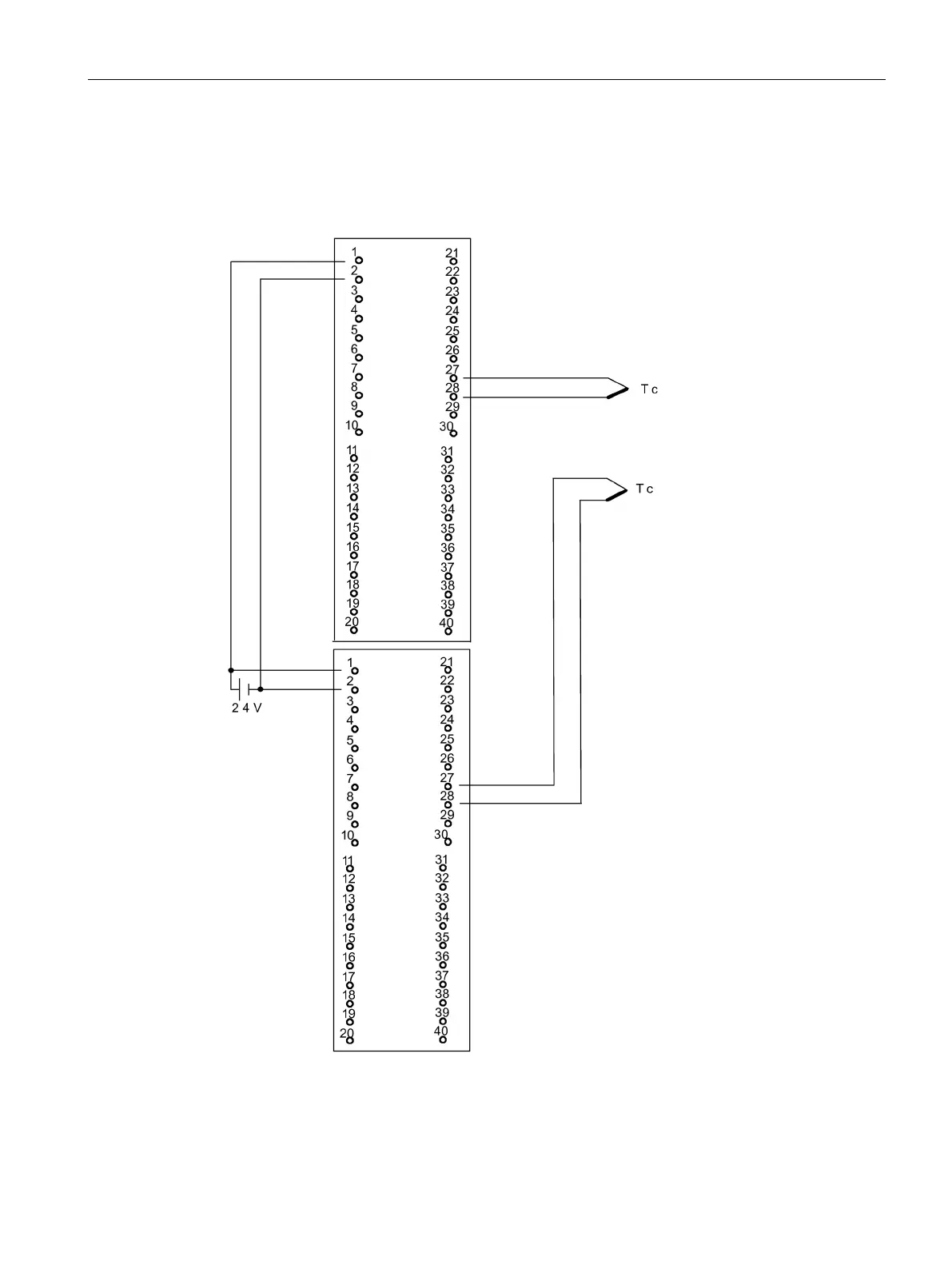

Figure C-31 Example of an interconnection AI 6xTC 16Bit iso
