Connection examples for redundant I/Os
C.24 SM 322; DO 16 x DC 24 V/0.5 A, 6ES7 322–8BH01–0AB0
CPU 410 Process Automation/CPU 410 SMART
414 System Manual, 05/2017, A5E31622160-AC
SM 322; DO 16 x DC 24 V/0.5 A, 6ES7 322–8BH01–0AB0

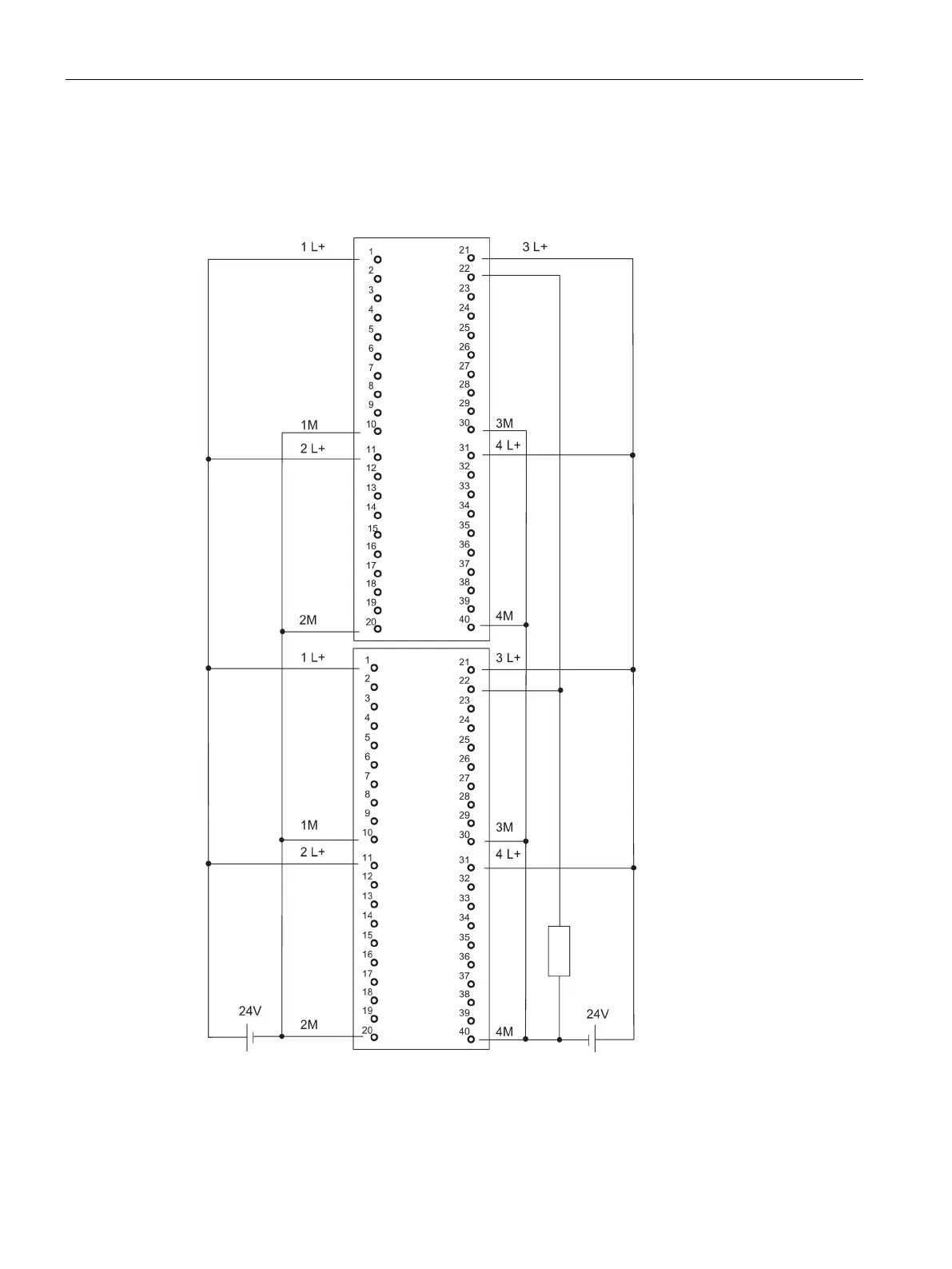

The diagram below shows the connection of an actuator to two redundant SM 322; DO 16 x
DC 24 V/0.5 A. The actuator is connected to channel 8.
Figure C-22 Example of an interconnection with SM 322; DO 16 x DC 24 V/0.5 A
