Connection examples for redundant I/Os
C.32 SM 331; AI 8 x 16 Bit; 6ES7 331–7NF10–0AB0
CPU 410 Process Automation/CPU 410 SMART
422 System Manual, 05/2017, A5E31622160-AC
C.32
SM 331; AI 8 x 16 Bit; 6ES7 331–7NF10–0AB0

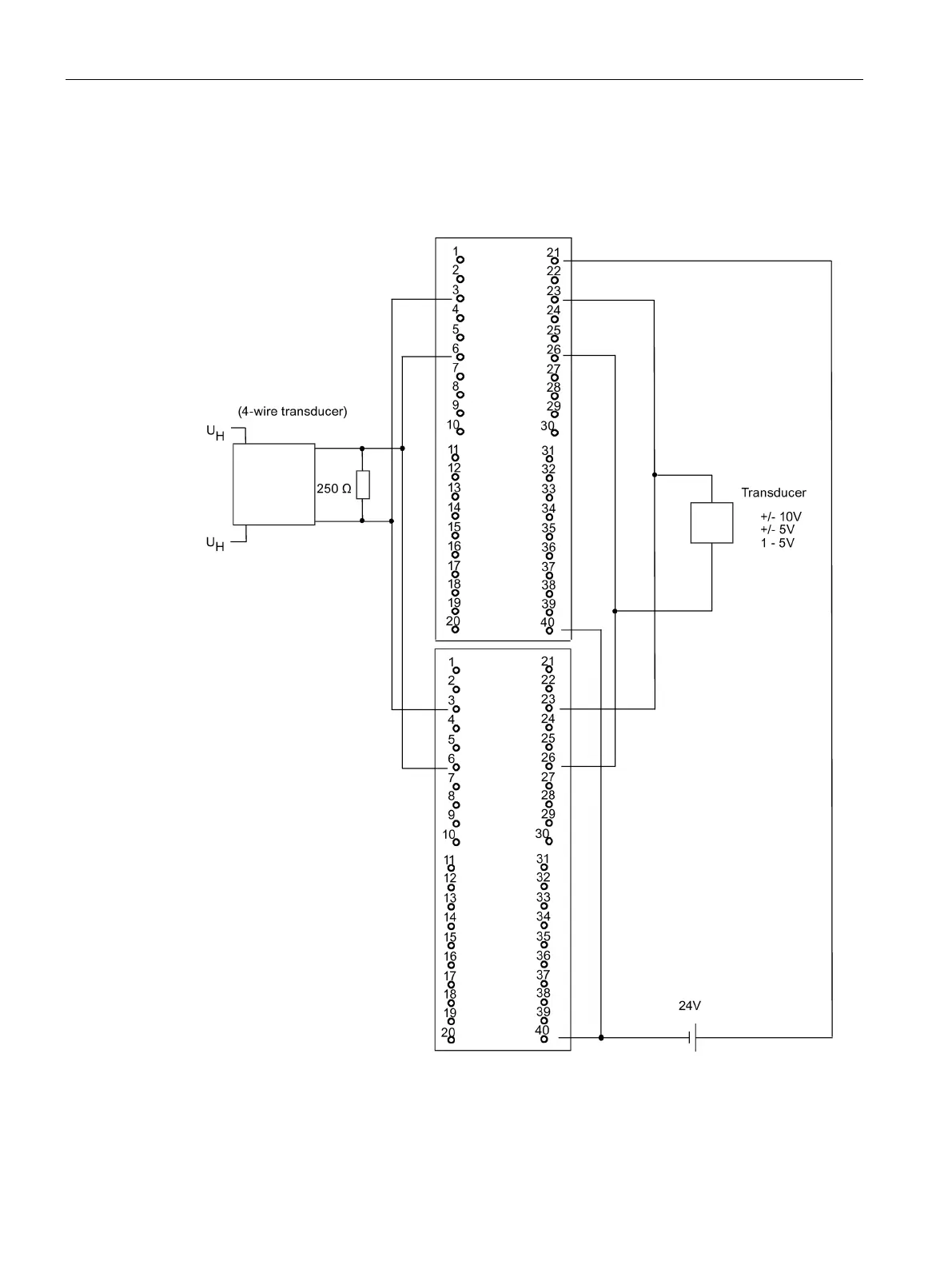

The figure below shows the connection of a transmitter to two redundant SM 331; AI 8 x 16
Bit. The transmitter is connected to channel 0 and 3 respectively.
Figure C-30 Example of an interconnection with SM 331; AI 8 x 16 Bit
