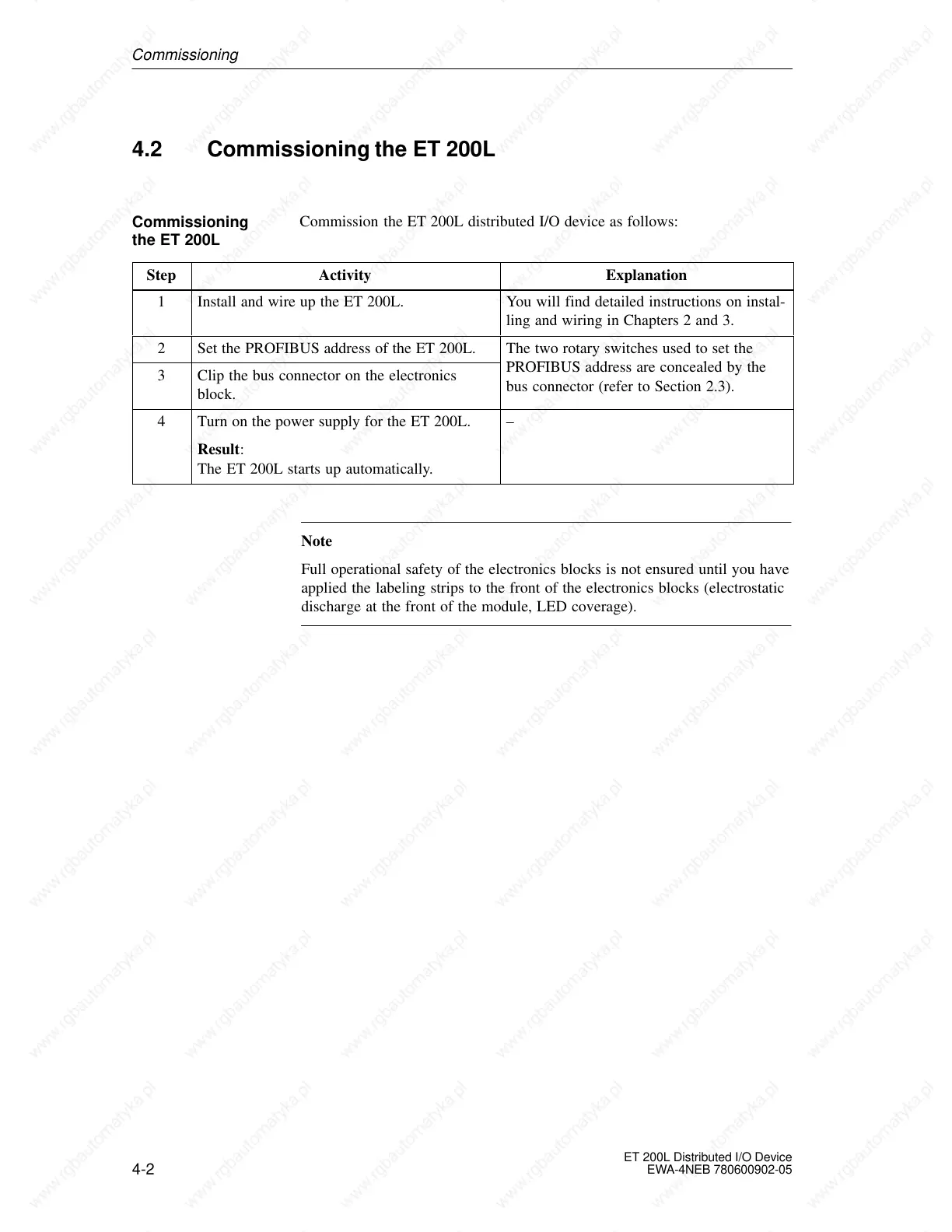

4.2 Commissioning the ET 200L
Commission the ET 200L distributed I/O device as follows:
Step
Activity Explanation
1 Install and wire up the ET 200L. You will find detailed instructions on instal-
ling and wiring in Chapters 2 and 3.
2 Set the PROFIBUS address of the ET 200L. The two rotary switches used to set the
PROFIBUS address are concealed by the
3 Clip the bus connector on the electronics
block.
PROFIBUS address are concealed by the
bus connector (refer to Section 2.3).
4 Turn on the power supply for the ET 200L.
Result:
The ET 200L starts up automatically.
–
Note
Full operational safety of the electronics blocks is not ensured until you have
applied the labeling strips to the front of the electronics blocks (electrostatic
discharge at the front of the module, LED coverage).
