Product overview
1.4 ET 200M distributed I/O device
ET 200M
14 Operating Instructions, 12/2008, EWA-4NEB780600602-08
1.4 ET 200M distributed I/O device
Definition
The distributed IO device, ET 200M, is a modular DP slave with an IP 20 degree of
protection.
The ET 200M has the configuration technology of the S7-300 automation system and
consists of an IM 153-x and I/O modules of the S7-300.
ET 200M supports communication with:
● all DP masters compliant with IEC 61784-1:2002 Ed1 CP 3/1
● all IO controllers compliant with IEC 61158
Configuration of the ET 200M (example)
1 2
3
① Power supply module PS 307
② Interface module IM 153-x
③ up to 12 I/O modules (SM / FM / CP)

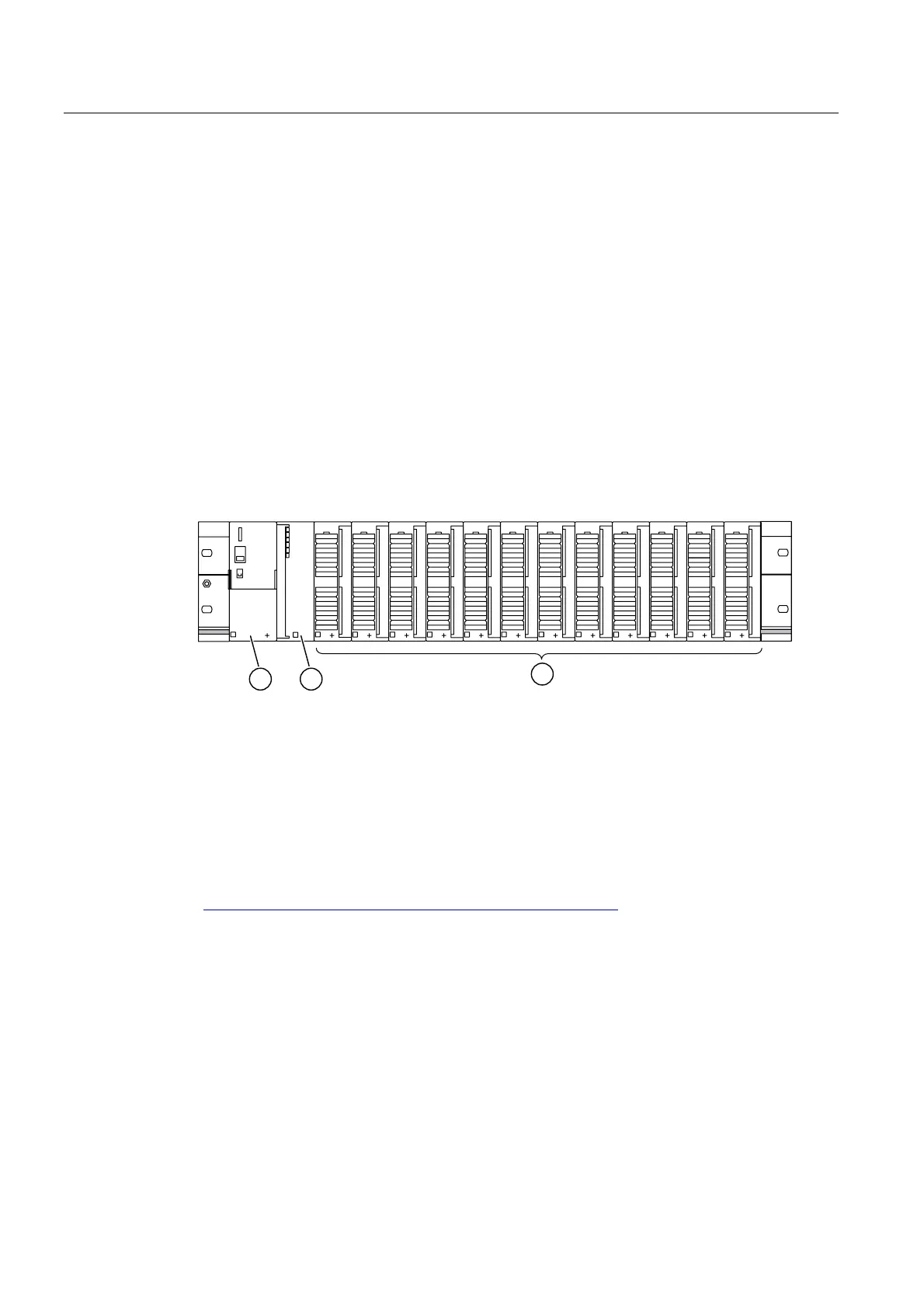

Figure 1-3 Configuration of the ET 200M distributed IO device (example)
In the
STEP 7 module catalog or in the GSD file you will find a list of the modules that you
can use in the ET 200M.
For the current GSD file, go to Internet
(http://support.automation.siemens.com/WW/view/en/113498
).
