Technical Specifications
10.5 Response time of the ET 200M
ET 200M
Operating Instructions, 12/2008, EWA-4NEB780600602-08
239
10.5 Response time of the ET 200M
Response Time - A Definition
The response time is the time between detection of the input signal and the modification of
the associated output signal.
Duration
The response time depends on the bus structure and on the DP master / IO controller. Refer
to the DP master / IO controller manual for basics for calculating the response time.
Factors
The response time for the ET 200M depends on the following factors:
Processing the data through the ET 200M
Delay of the inputs and outputs (refer to the "S7-300 automation system, module
specifications (http://support.automation.siemens.com/WW/view/en/8859629
)" reference
manual.
ET 200M
The time for processing the data within the ET 200M has a typical value of 1 ms. It is in this
time that the data processing takes place in the IM 153x and the data transfer between the
IM 153-x and the inserted modules.
PV
W
3URFHVVLQJWKH
GDWDLQWKH
,0[
'DWDWUDQVIHU
EHWZHHQ
,0[DQG
PRGXOHV
'HOD\WLPHRIWKHLQSXWRXWSXW
PRGXOHV
UHIHUWRWKHUHIHUHQFHPDQXDO
IRUPRGXOHGDWD

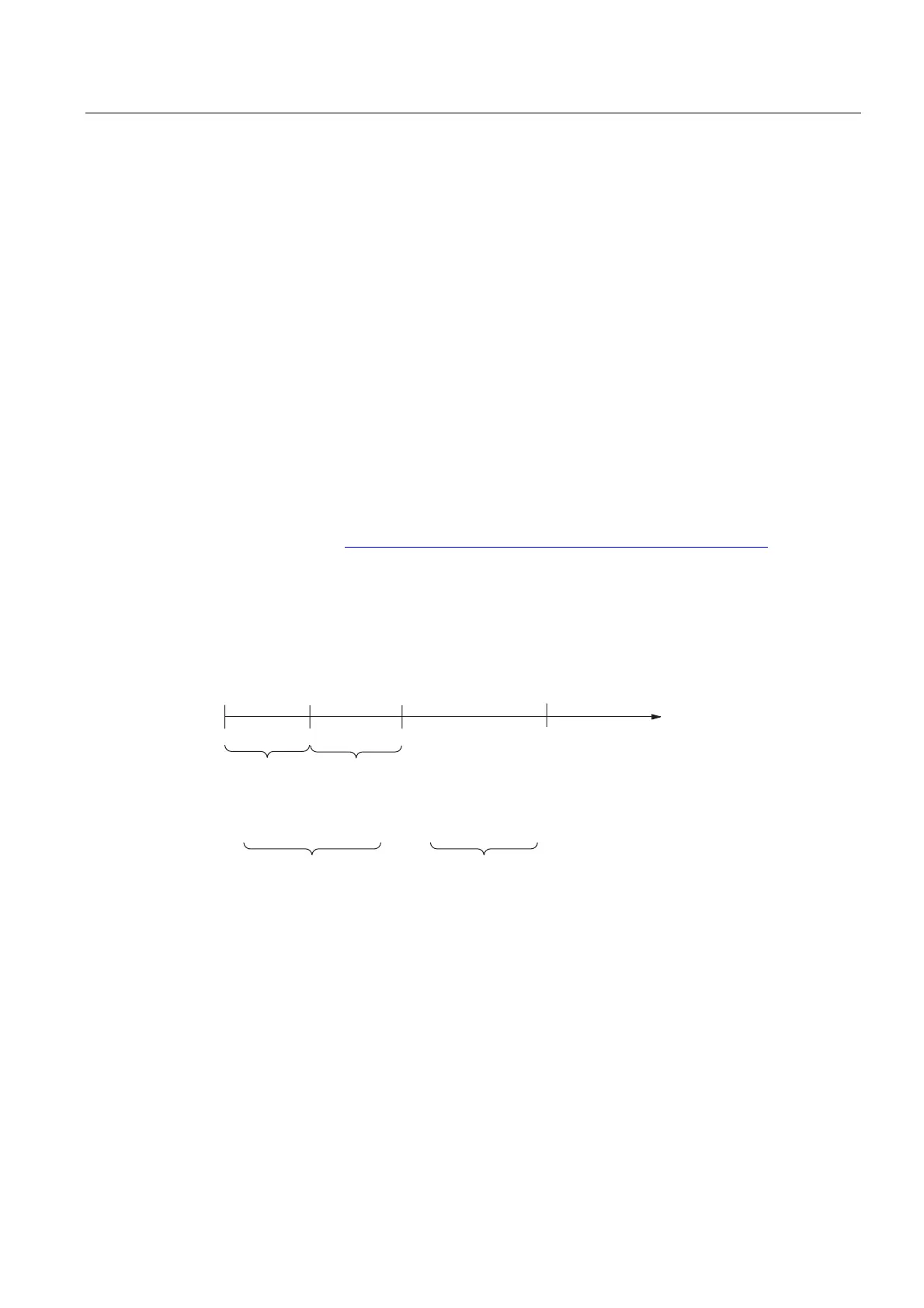

Figure 10-6 Response time of the ET 200M
