Siemens SIMATIC ET 200M

Interrupt, error and system messages
9.1 PROFIBUS DP
ET 200M
Operating Instructions, 12/2008, EWA-4NEB780600602-08
197
9.1.3.4 Manufacturer ID
Definition
The manufacturer ID contains a code that describes the type of the DP slave.
Manufacturer ID
Table 9- 7 Structure of the manufacturer ID (Bytes 4, 5)
Byte 4 Byte 5 Manufacturer ID for
80
H
1D
H
IM 153 / IM 153-1
80
H
1E
H
IM 153-2
80
H
71
H
IM 153-2 FO
9.1.3.5 Evaluating the slave diagnosis

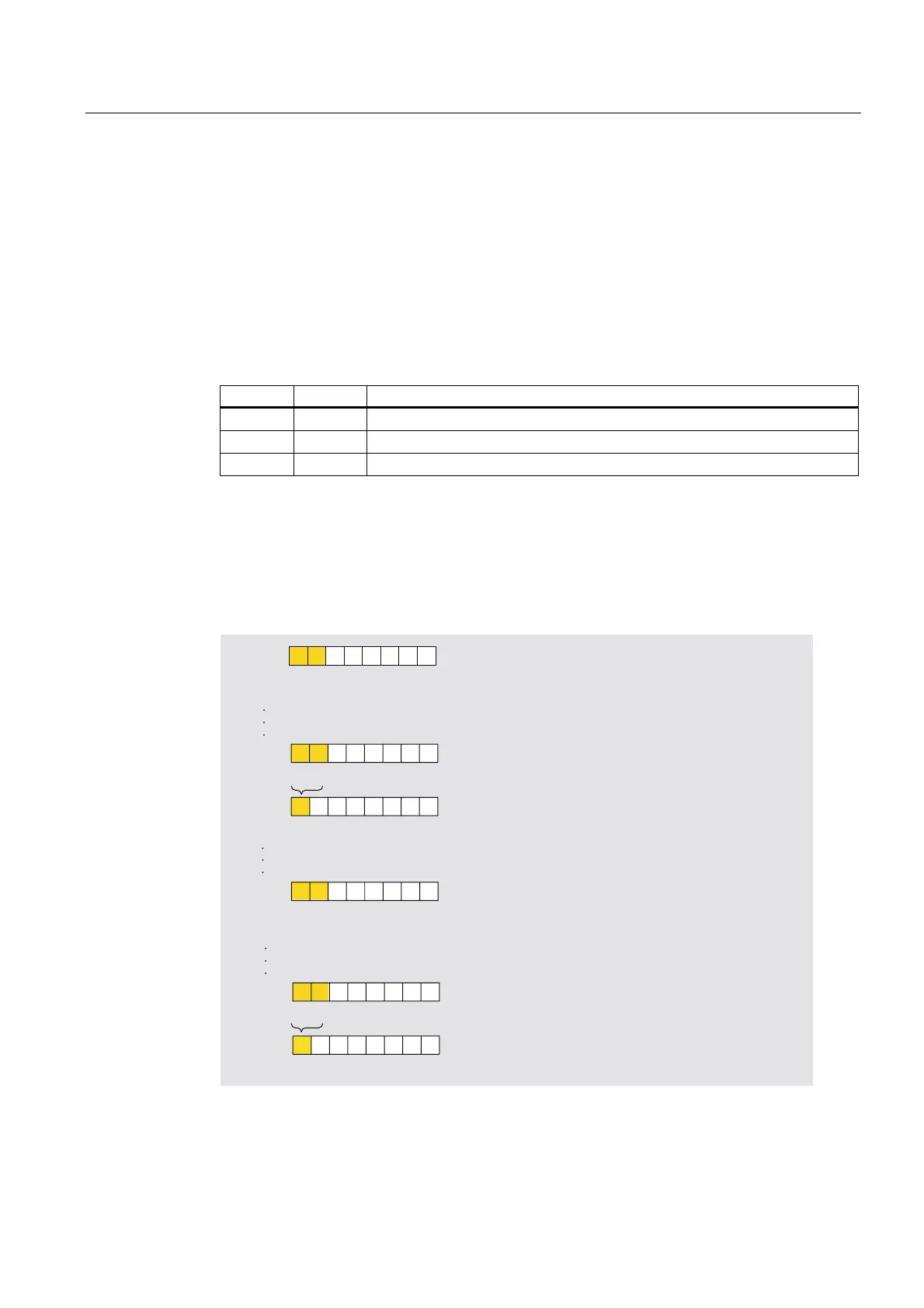

The following figure shows a procedure for evaluating the slave diagnosis in a systematic
manner. If, during the configuration, you have not deselected any diagnosis, the specified
byte addresses shall apply. If individual diagnoses have been deselected, move the byte
addresses accordingly.








ൺUHIHUWRFKDSWHUದLGHQWLILHUUHODWHGGLDJQRVLV
ൺUHIHUWRFKDSWHUPRGXOHVWDWXV
ൺUHIHUWRWKHFKDSWHUದFKDQQHOVSHFLILFGLDJQRVWLFV

ൺUHIHUWRFKDSWHULQWHUUXSWV
%\WH
%\WH
%\WH
%\WH
%\WH[
%\WH[
Figure 9-3 Evaluating the slave diagnosis
