10.4 Technical specifications of the IM 153-4 PN interface module
ET 200M
Operating Instructions, 12/2008, EWA-4NEB780600602-08
237
Block diagram
(OHFWURQLFV
6ZLWFK
352),1(7
FRQQHFWLRQ
(OHFWULFDO
LVRODWLRQ
6,0$7,&0LFUR
0HPRU\&DUG
3RZHUVXSSO\
%DFNSODQHEXV
/,1.
/
0
5;7; 6) %)
07
21
5-
5-

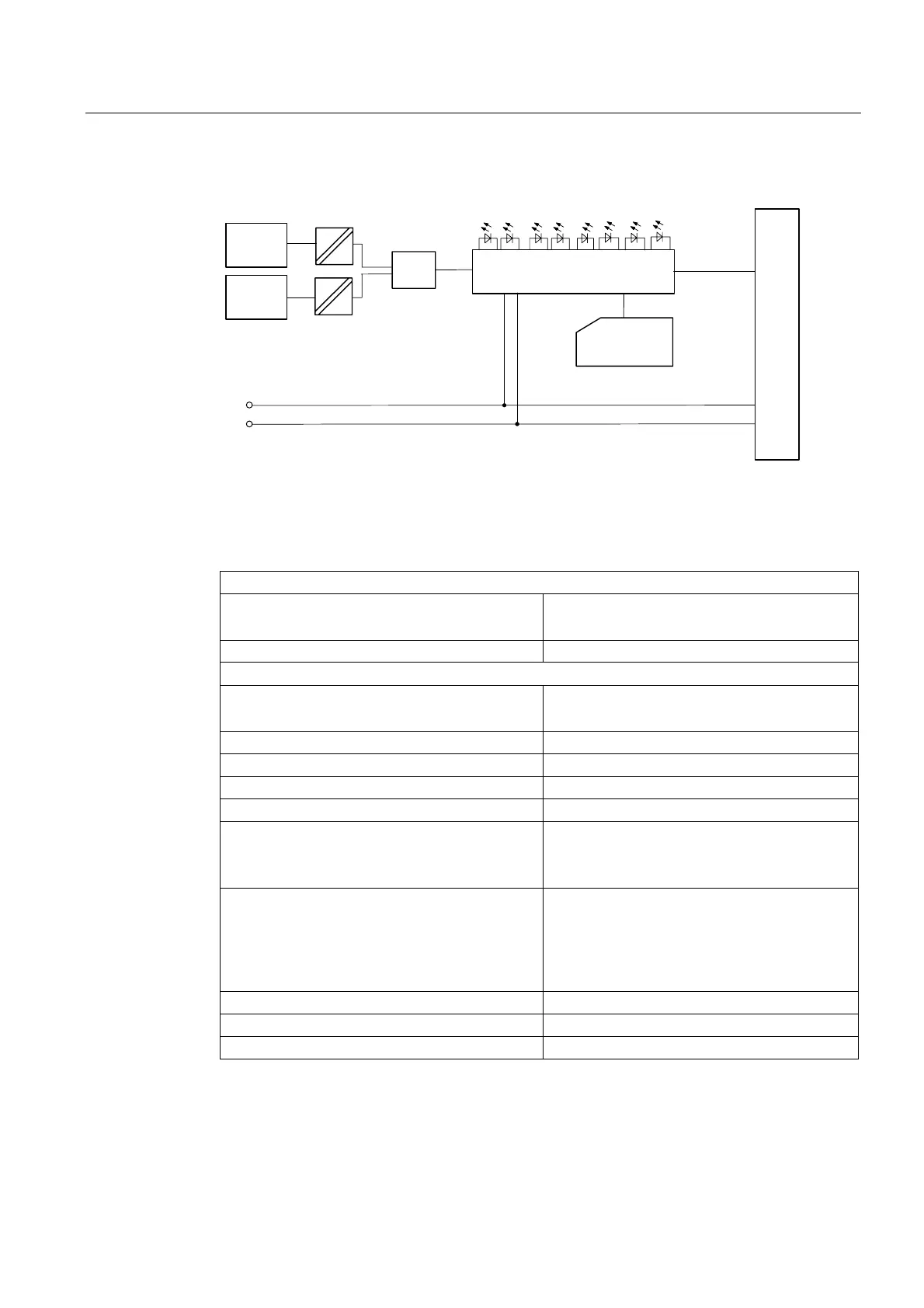

Figure 10-5 Block diagram of the IM 153-4 PN interface module
Technical specifications of the IM 153-4 PN (6ES7153-4AA01-0XB0)
Dimensions and weight
Dimensions W x H x D (mm)
• 40 x 125 x 117
• 40 x 125 x 190 (with front door opened)
Weight Approx. 215 g
Module-specific specifications
Data transmission rate
• 10 Mbps for Ethernet services
• 100 Mbps full duplex for PROFINET IO
Transmission procedure 100BASE-TX
Send clock 250 µs to 4000 µs in 125 µs increments
Autonegotiation yes
Autocrossing yes
Bus protocol
• PROFINET IO
• TCP/IP
• IRT with high flexibility
Supported Ethernet services
• ping
• arp
• Network diagnostics (SNMP): LLDP-MIB /
MIB-2
• Reset SNMP parameters to factory settings
PROFINET interface 2x RJ45
Manufacturer ID (vendor ID) 002A
H
Device ID (DeviceID) 0302
H
