Brief instructions on commissioning
2.1 Commissioning on PROFIBUS DP
ET 200M
22 Operating Instructions, 12/2008, EWA-4NEB780600602-08
Necessary components
The following figure shows you which ET 200M components you require for the
commissioning example.
1
2
3
45678

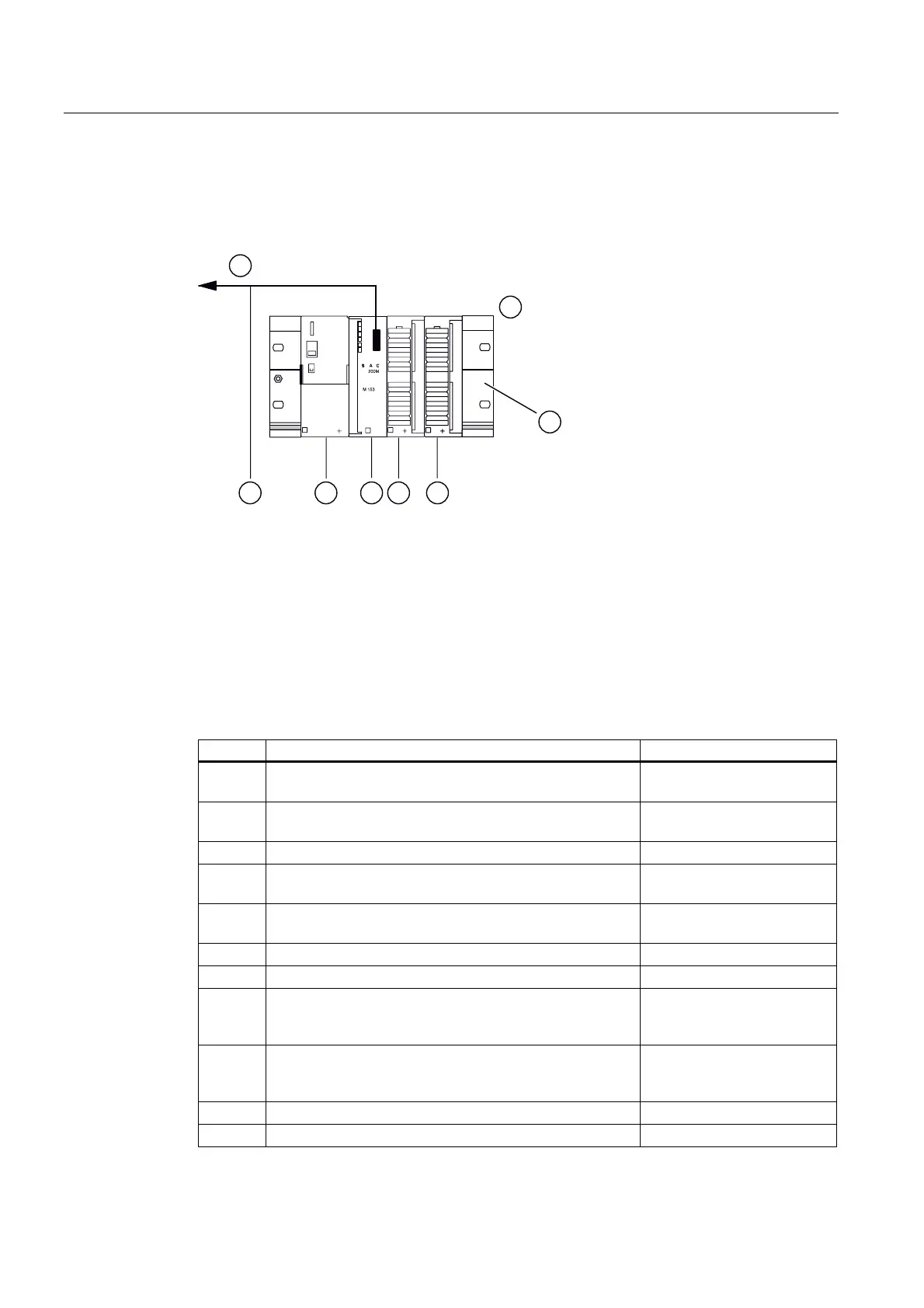

Figure 2-1 ET 200M components for the example configuration
① to the DP master ⑤ SM 321
② Slot ⑥ IM 153-2
③ Mounting rail ⑦ Power supply PS 307
④ SM 322 ⑧ PROFIBUS cable with bus connector
Order numbers for the example configuration
Number Item Order number (Siemens)
1 Mounting rail e.g.
6ES7390-1AE80-0AA0
1 PS 307 power supply with jumper e.g.
6ES7307-1BA00-0AA0
1 Interface module IM 153-2 6ES7153-2BA01-0XB0
1 DI module SM 321 e.g.
6ES7321-7BH01-0AB0
1 DO module SM 322 e.g.
6ES7322-8BF00-0AB0
2 20-pin front connector with screw contacts 6ES7392-1AJ00-0AA0
x m PROFIBUS DP cable with bus connectors depending on design
x m Cable for grounding the rail with 10 mm² cross section and
cable lug suitable for M6,
length depending on local factors
commonly available
Various M6-screws and nuts
(length dependent on location)
with suitable screw driver
commonly available
1 Screwdriver with tip width 3,5 mm commonly available
1 Screwdriver with tip width 4,5 mm commonly available
