Connecting
5.4 Wiring the power supply and modules
ET 200M
86 Operating Instructions, 12/2008, EWA-4NEB780600602-08
Installing the Shield Contact Element
Install the shield contact element as follows:
1. Push the two bolts of the fixing bracket into the guide on the underside of the rail. Position
the fixing bracket under the modules to be wired.
2. Bolt the fixing bracket tight to the rail.
3. A slotted web is arranged at the bottom side of the terminal element. Place the shield
terminal at this position onto the edge of the fixing bracket (see the figure).
1
2
2
4. Press the shield terminals down and swing them into the desired position.
You can attach up to four terminal elements on each of the two rows of the shield contact
element.
1
2

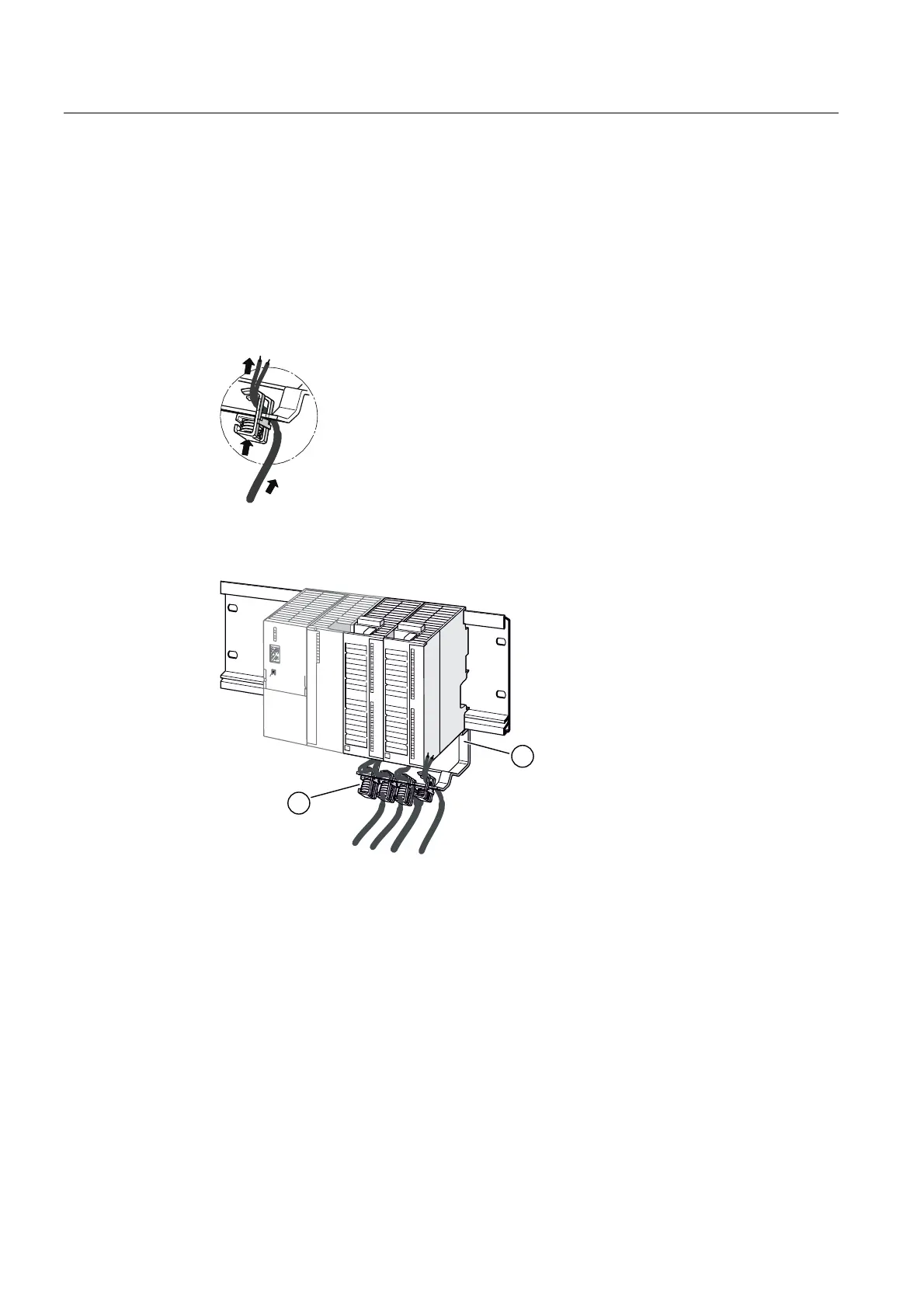

Figure 5-4 Placing shielded 2-wire lines on the shield contact element
① Fixing bracket
② Shield terminals
