Siemens simatic et200sp User Manual

Module versions
C.1 Module version "2 I / 2 Q"
Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)
124 Manual, 12/2015, A5E36061895-AA
Assignment of the output user data
Via the output user data you control for all phases
● Resetting for all minimum values, maximum values, limits, operating hours counter and
energy counters.
● The counter gates for operating hours counter and energy counters.

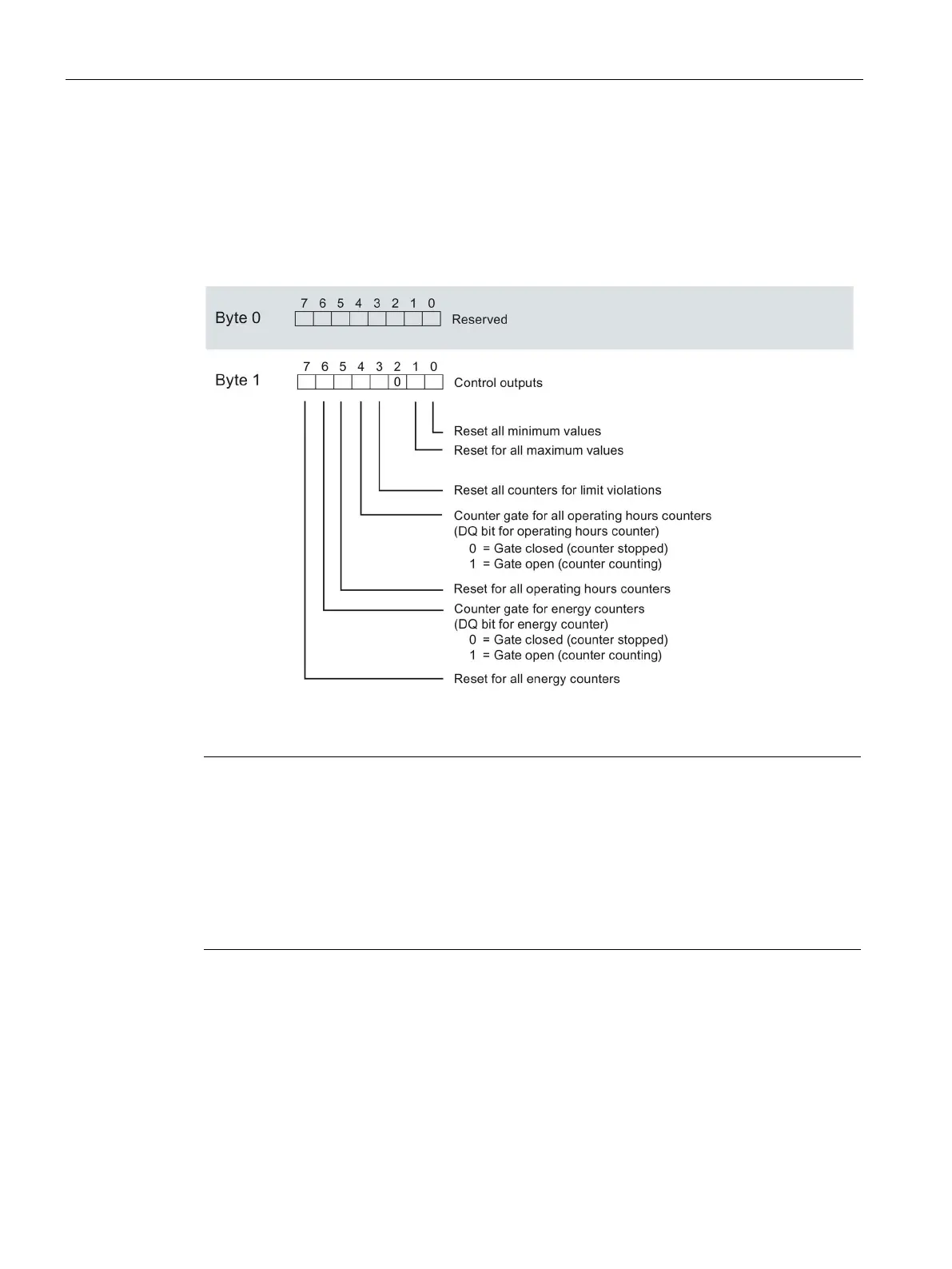

Image C-2 Allocation of the control byte in the output user data (1 byte)
Note
For module version 2 I / 2 Q, a r
eset of the selected variables always acts on
all
measured
values/counter levels of the three phases.
•
Reset energy counter: Acts on all active, reactive and apparent energies of all phases
•
Reset operating hours counter: Acts on the counters of Phases 1 to 3
•
Reset minimum / maximum values: Acts on the minimum and maximum value
calculations of Phases 1-3
•
Reset all counters for limit violations: Acts on all 16 limit values.
