Parameter data records
A.3 Structure of the parameter data record 129 for limit monitoring
Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)
106 Manual, 12/2015, A5E36061895-AA
A.3
Structure of the parameter data record 129 for limit monitoring
Structure of data record 129

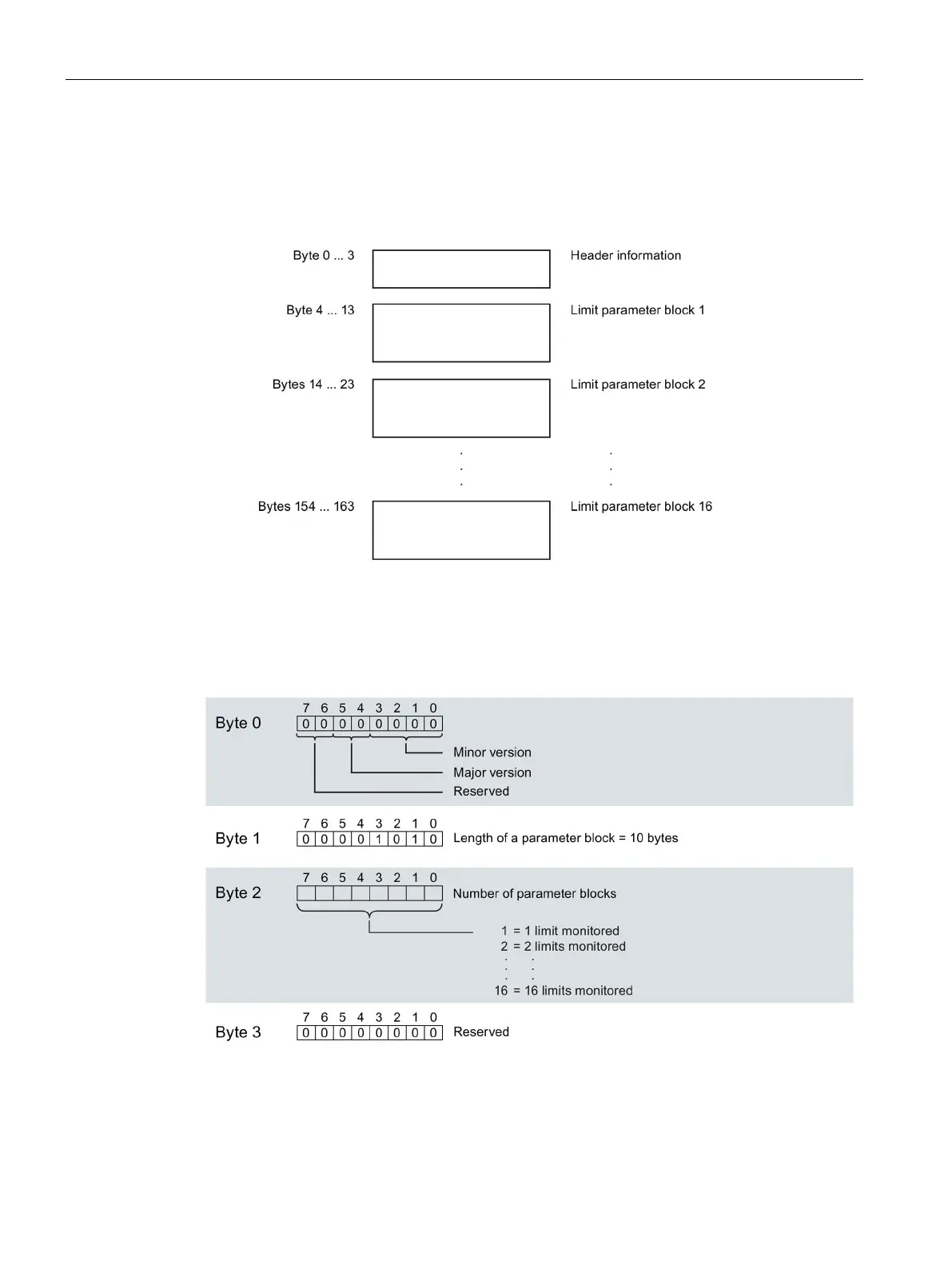

Image A-7 Structure of data record 129
Header information
The figure below shows the structure of the header information.
Image A-8 Header information DS 129
