Parameter data records
A.4 Structure of the parameter data record 130 for user-data mapping
Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)
110 Manual, 12/2015, A5E36061895-AA
A.4
Structure of the parameter data record 130 for user-data mapping
Structure of data record 130

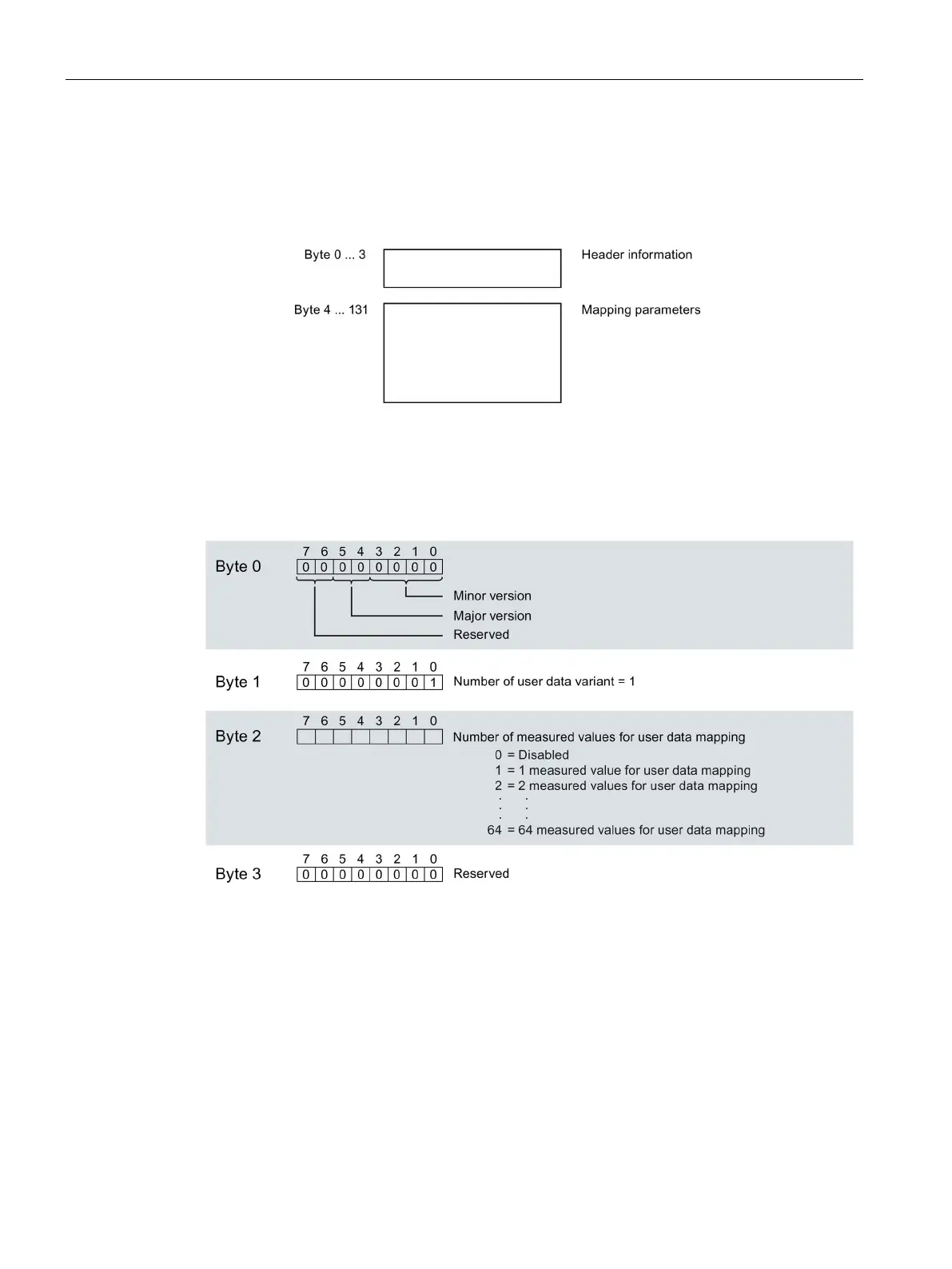

Image A-10 Structure of data record 130
Header information
The figure below shows the structure of the header information.
Image A-11 Header information DS 130
