Module versions
C.2 Module version "32 I / 12 Q"
Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)
126 Manual, 12/2015, A5E36061895-AA
Allocation of the input user data
You can change the measured variables during operation. You can choose between different
user data variants.

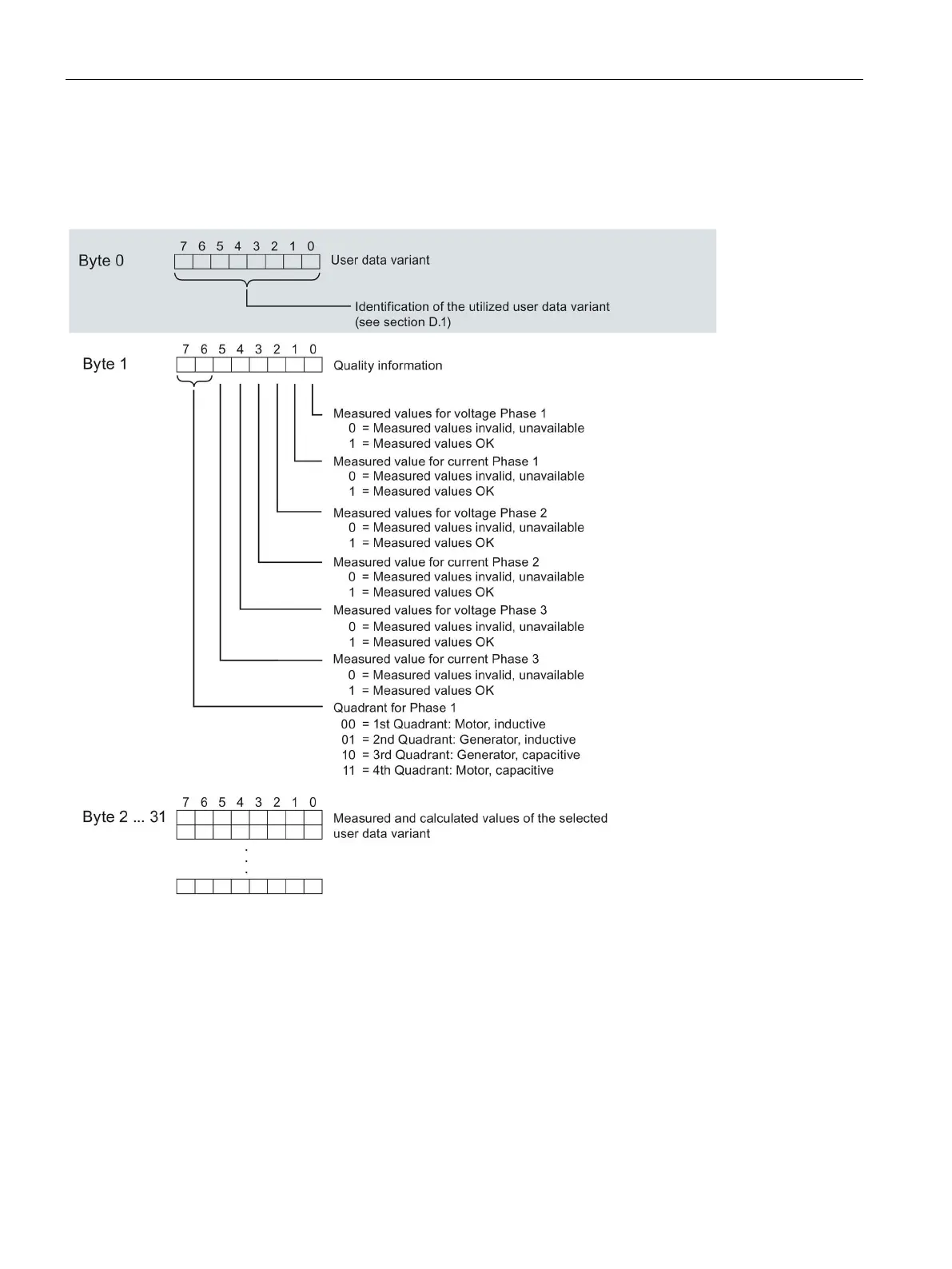

Image C-3 Assignment of the input user data (32 bytes)
