Module versions
C.2 Module version "32 I / 12 Q"
Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)
Manual, 12/2015, A5E36061895-AA
129
Control bytes for limit monitoring

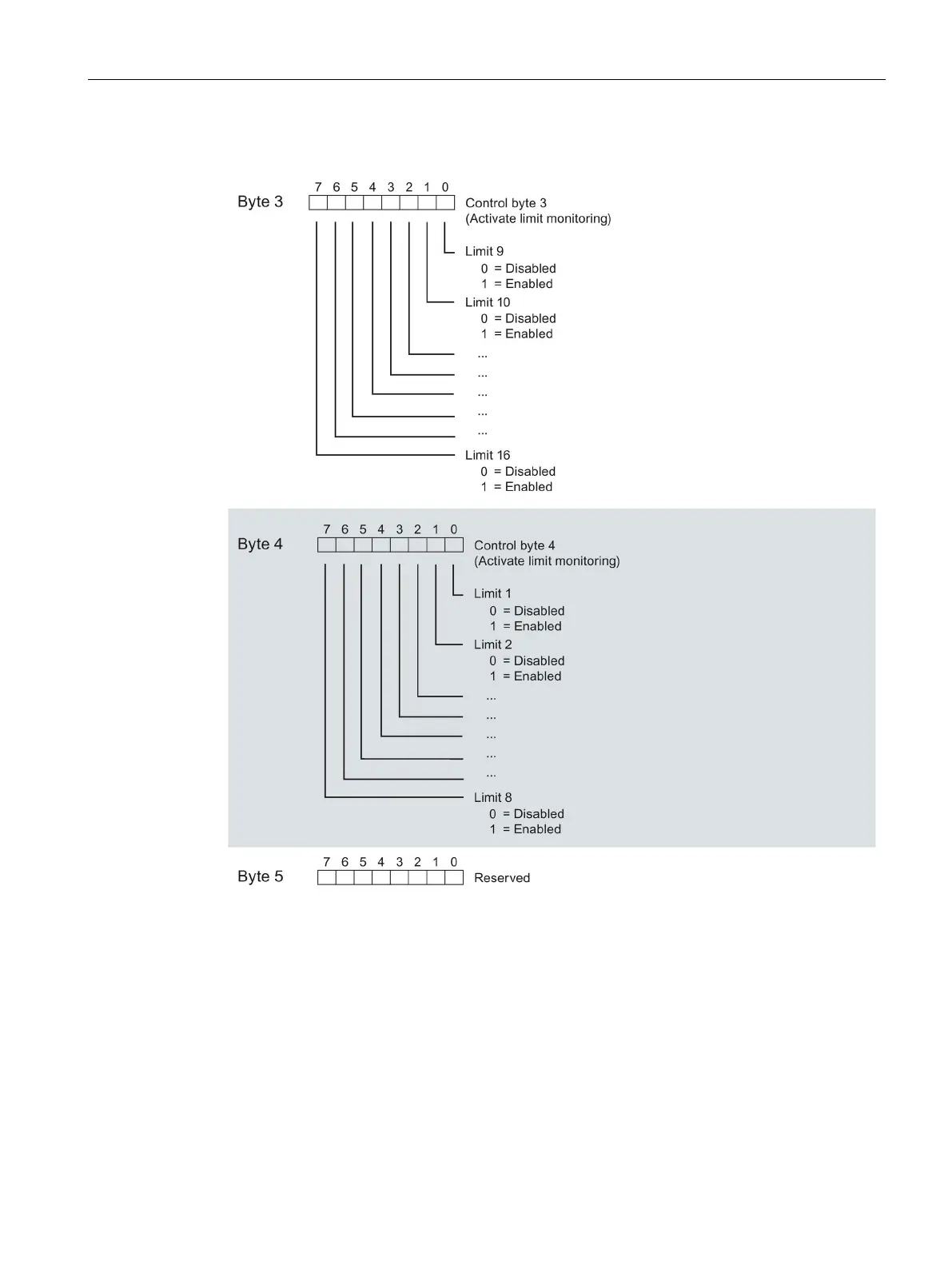

Image C-6 Allocation of the control bytes for limit monitoring (bytes 3 to 5)
