Wiring
3.1 Terminal and block diagram
Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)
16 Manual, 12/2015, A5E36061895-AA
Protecting the connection cables
To protect the connection cables at U
L1
, U
L2
and U
L3
, make sure there is adequate cable
protection, especially after cross-section transitions.
If short-circuit resistance according to IEC 61439-1:2009 is ensured by the design, there is
no need for separate cable protection for the AI Energy Meter 480VAC ST.

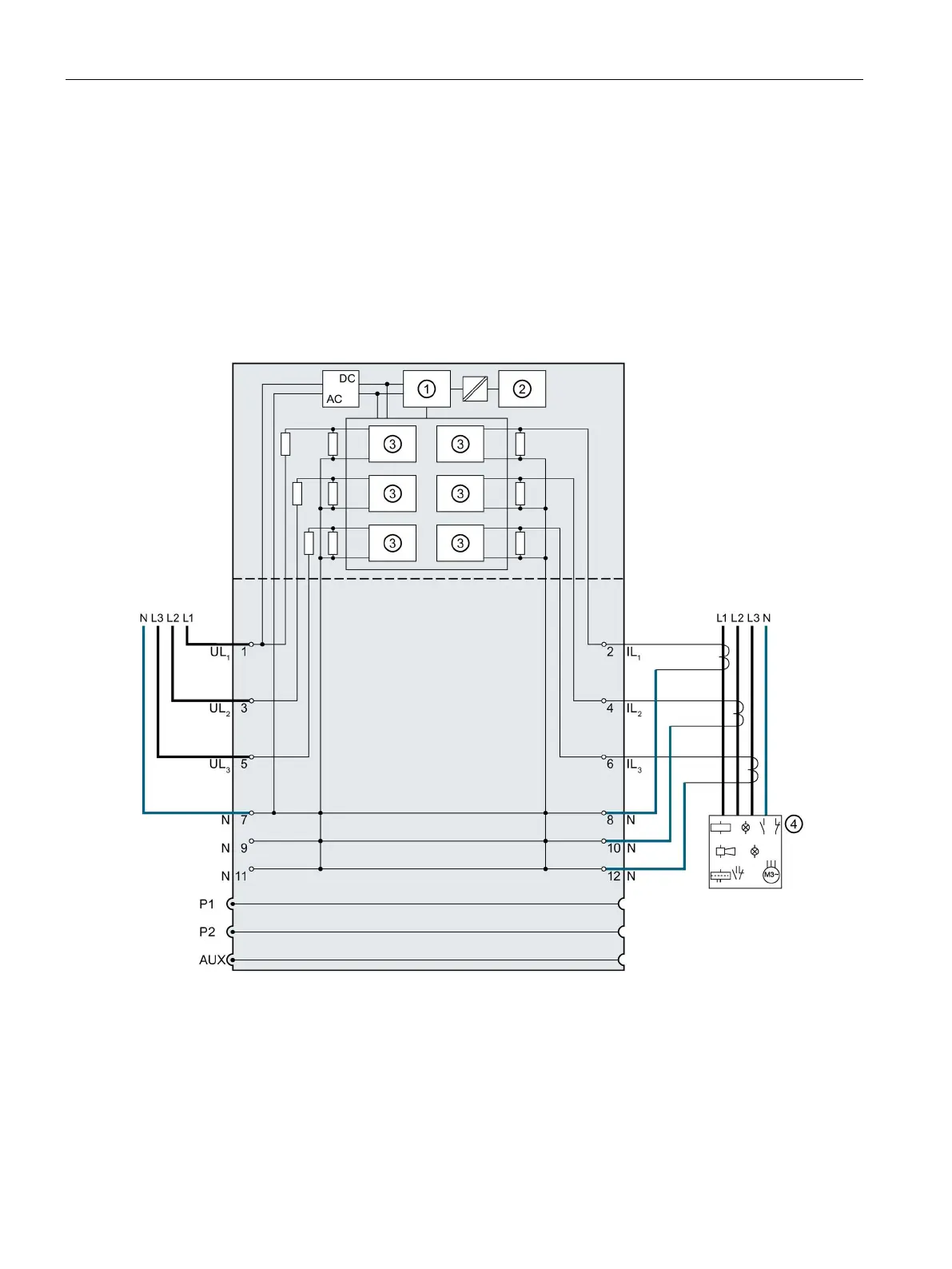

Terminal and block diagram
①
Microcontroller
UL
n
Voltage connection
②
Backplane bus interface
IL
n
Current connection
③
Analog-to-digital converter (ADC)
N
Neutral conductor
④
Power measurement
Image 3-1 Block diagram of the AI Energy Meter 480VAC ST
