Wiring

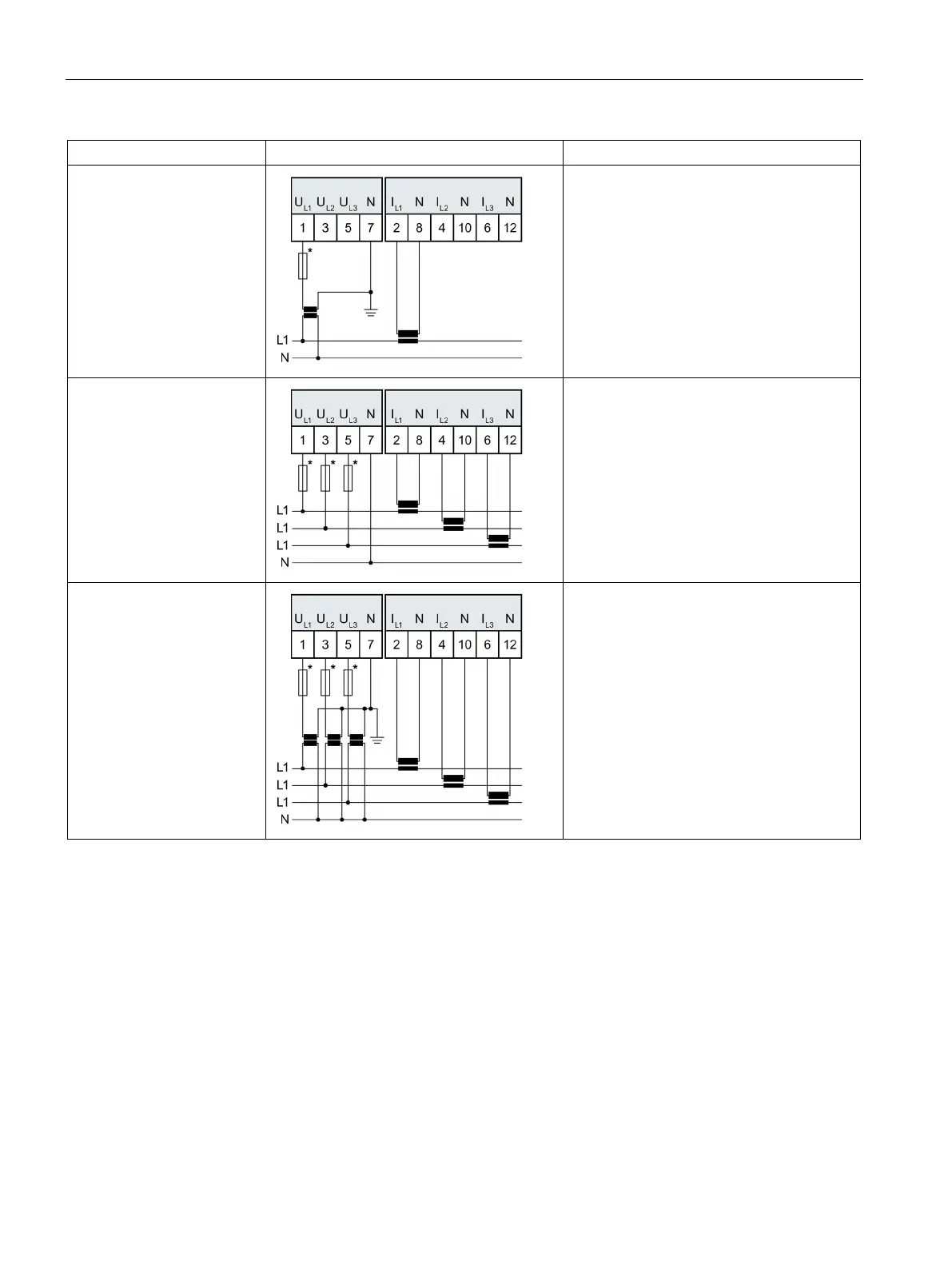

3.2 Connection examples

Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)

20 Manual, 12/2015, A5E36061895-AA

Connection type

Wiring diagram

Comment

1P2W

Single-phase measurement,

2 conductors

Measuring the load in an AC network with a

current and a voltage converter

Energy Meter supplies the value "0" for all

measured values of Phases 2 and 3 as well

as for some cross-phase measured values.

3 x 1P2W

3 x single-phase measure-

ment

Measurement with three current transform-

ers for any three loads that are each con-

nected to one of the three phases

Max. permissible secondary current of the

current transformer is 1 A

3 x 1P2W

3 x single-phase measure-

ment

Measurement with three current transform-

ers and three voltage transformers for any

three loads that are each connected to one

of the three phases

Max. permissible secondary current of the

current transformer is 1 A

If short

-circuit resistance is ensured by conformity to IEC 61439-1:2009, there is no need for separate line protection for the

AI Energy Meter 480VAC ST.
