Energy counters
7.5 Data record for energy counter (DS 143)
Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)
58 Manual, 12/2015, A5E36061895-AA
Control information
When data record 143 is written with the WRREC instruction, Bytes 2 to 7 are used as
phase-specific control information for energy counters, overflow counters and operating
hours counter. The length of the control information amounts to 2 bytes for each phase:
● In control byte 1 you determine which counter you want to reset and the time at which
counters are reset.
● In Control byte 2 you determine which energy counters and which overflow counters you
want to reset.

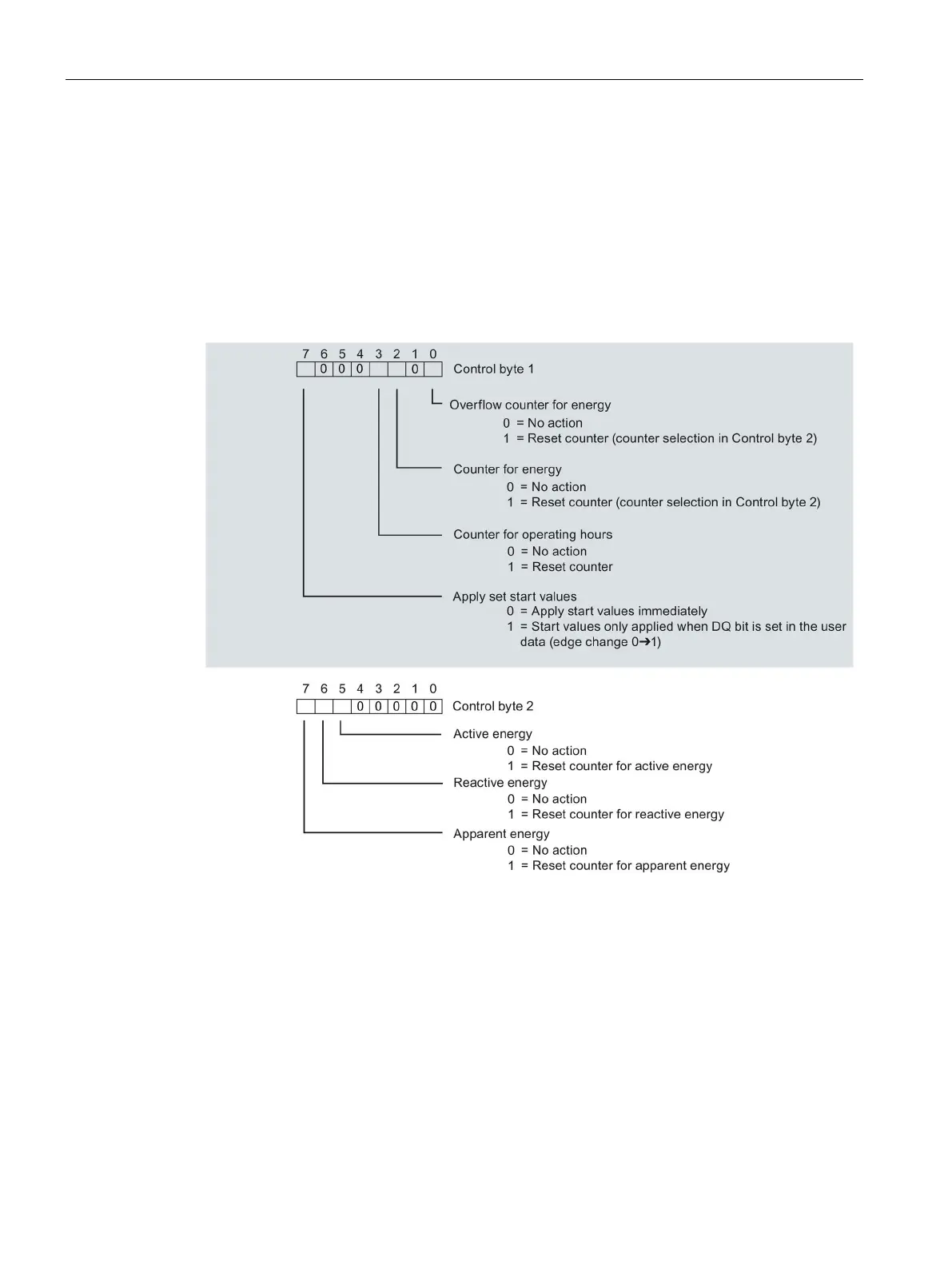

Image 7-8 Control information DS 143 (write access)

Siemens simatic et200sp Specifications

General

Category	I/O Systems
Power Supply	24 V DC
Protection Rating	IP20
Number of Modules	Up to 64 modules
Mounting	DIN Rail
Communication Protocols	PROFINET, PROFIBUS
Storage Temperature	-40 °C to +70 °C
Digital Inputs	Yes (depending on module)
Digital Outputs	Yes (depending on module)
Analog Inputs	Yes (depending on module)
Analog Outputs	Yes (depending on module)
Modularity	Modular
Relative Humidity	5 to 95% (non-condensing)
Weight	Varies by configuration
System Type	Distributed I/O
