Operating hours counter
8.2 Reset operating hours counters
Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)
64 Manual, 12/2015, A5E36061895-AA
Procedure at module version with 2 bytes of output data
Set the reset bit (Bit 5) in Control byte 1 from 0 to 1 through an edge change.

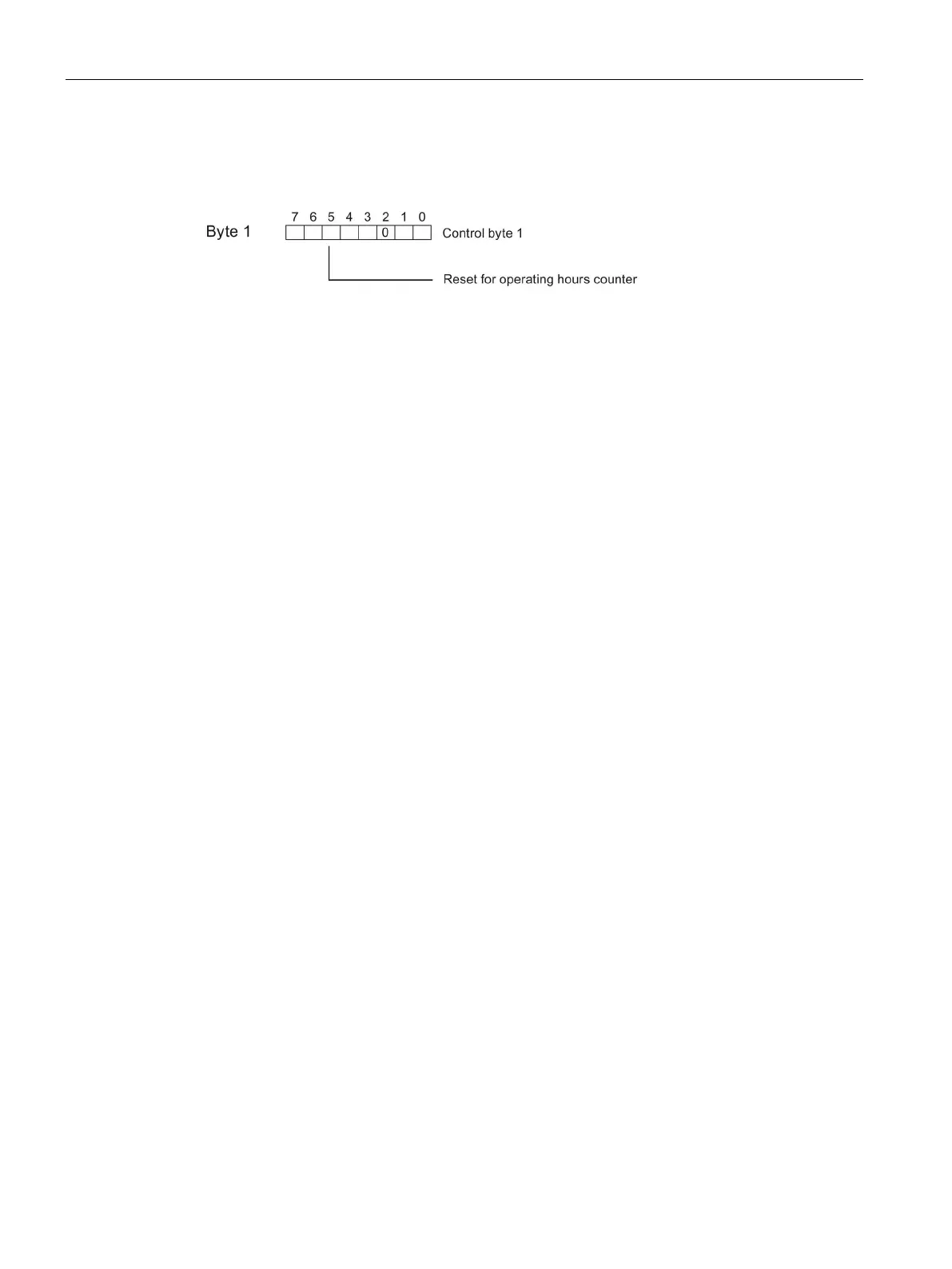

Image 8-2 Resetting the operating hours counters at module version with 2 bytes of output data
After the reset the operating hours counters count with the specified start values (default =
0). You can change the start values for the operating hours counters via data record DS 143,
see section Structure for energy counters (DS 143) (Page 159).
