Minimum and maximum values
10.2 Resetting minimum and maximum values
Analog input module AI Energy Meter 480VAC ST (6ES7134-6PA20-0BD0)
Manual, 12/2015, A5E36061895-AA
73
Procedure at module version with 12 bytes of output data
1. Set the category of the measured values to 1 in Control byte 2 via Bit 0 to 4 in the output
data.
2. Set the reset bit (Bit 0 or Bit 1) in Control byte 1 of the output data from 0 to 1 through an
edge change in the output data.

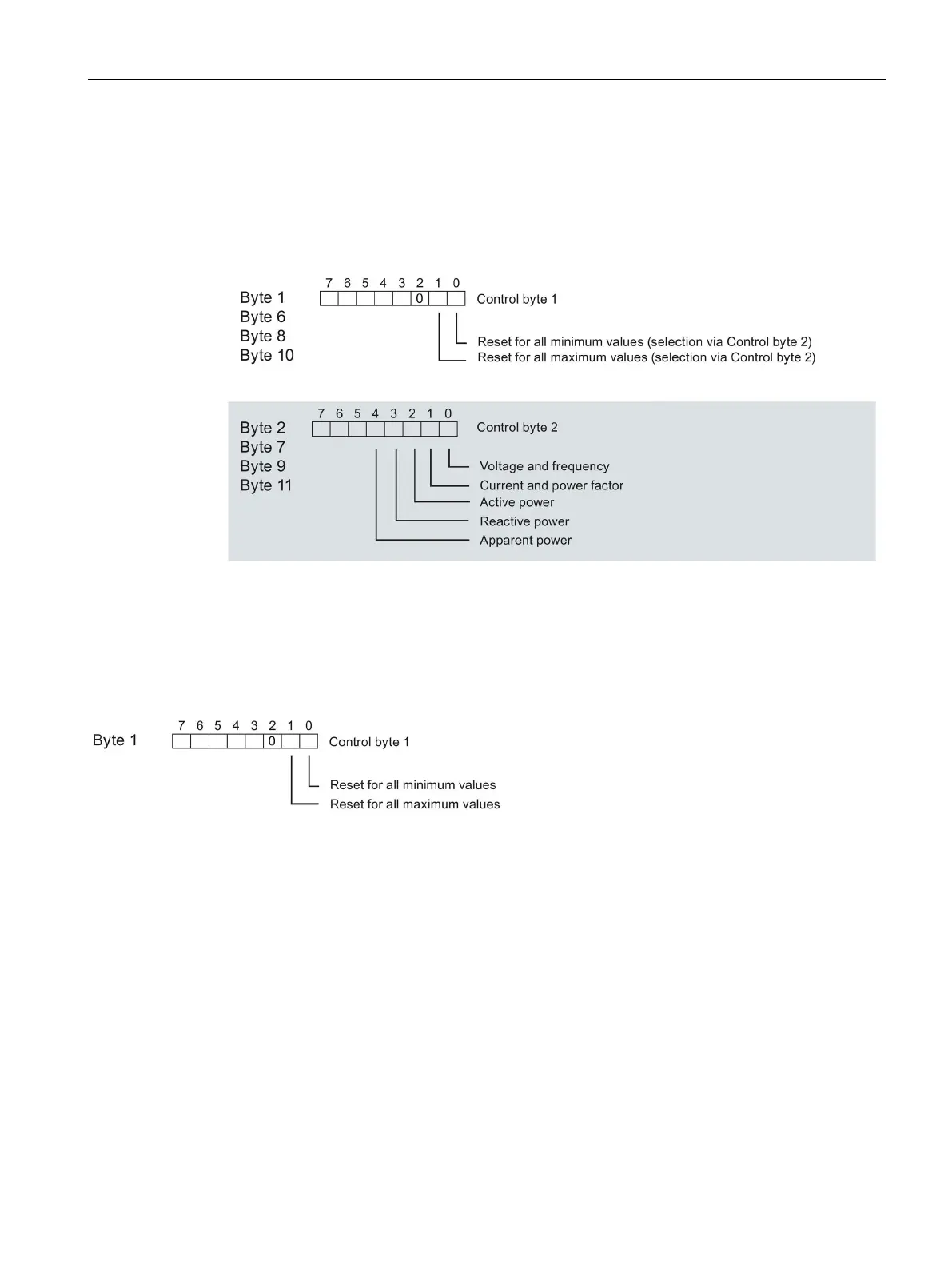

Image 10-1 Resetting the minimum and maximum values at module version with 12 bytes of output
data
Procedure at module version with 2 bytes of output data
Set the reset bit (Bit 0 or Bit 1) in Control byte 1 from 0 to 1 through an edge change.
Image 10-2 Resetting the minimum and maximum values at module version with 2 bytes of output data
