Overview
1.3 Design of the devices
Comfort Panels
20 Operating Instructions, 08/2018, A5E36770603-AC

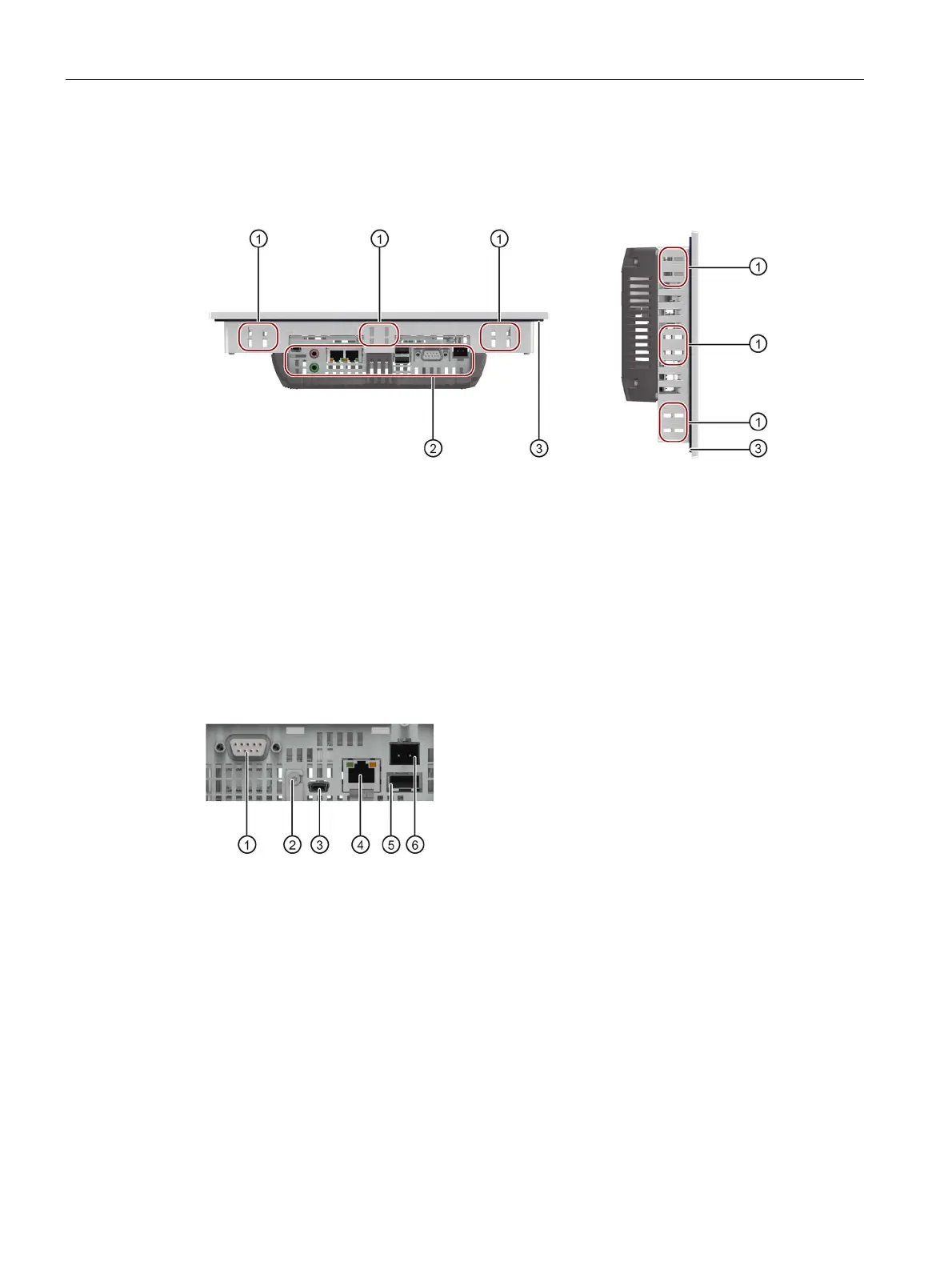

The figure below shows the side views of the HMI devices with the Comfort V1 devices,
KP700 Comfort and TP700 Comfort, as examples.
Cutouts for mounting clips
Interfaces
Interfaces for the 4" models
The figure below shows the ports of the Comfort V1 devices, KP400 and KTP400 Comfort.
X2 PROFIBUS (Sub-D RS422/485)
X80 power supply connector
X1 PROFINET (LAN), 10/100 Mb
