1.3 Design of the devices
Comfort Panels
16 Operating Instructions, 08/2018, A5E36770603-AC
1.3
Design of the devices
1.3.1
KP400 Comfort and KTP400 Comfort
The following sections describe the basic design of the KP400 Comfort and KTP400 Comfort
HMI devices.
Front view

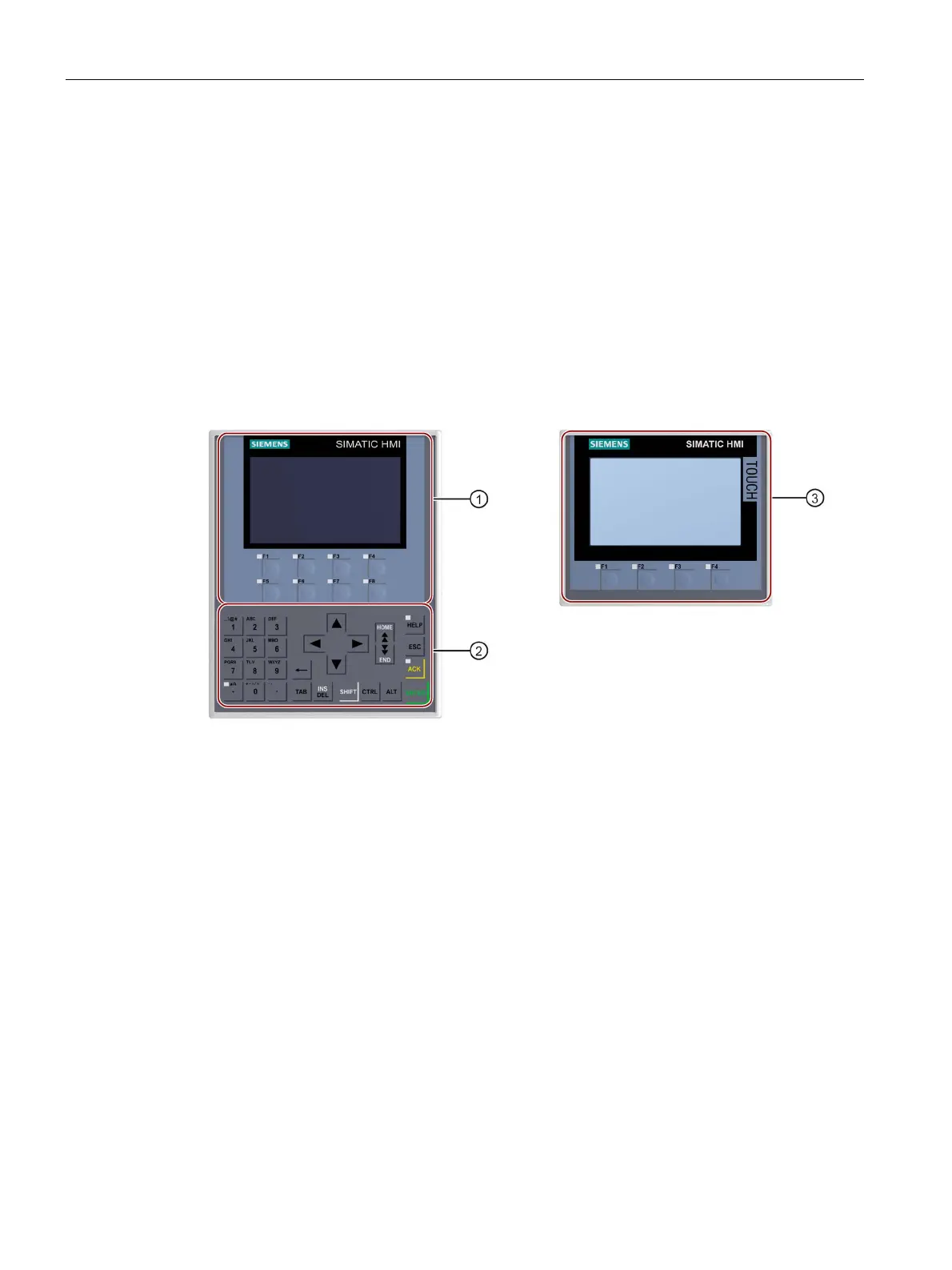

The figure below shows the front view of the HMI devices, FKP400 Comfort (left) and
KTP400 Comfort (right):
①
Display with function keys
②
Keyboard / system keys
③
Touch screen display with function keys
