Mounting and connecting the device

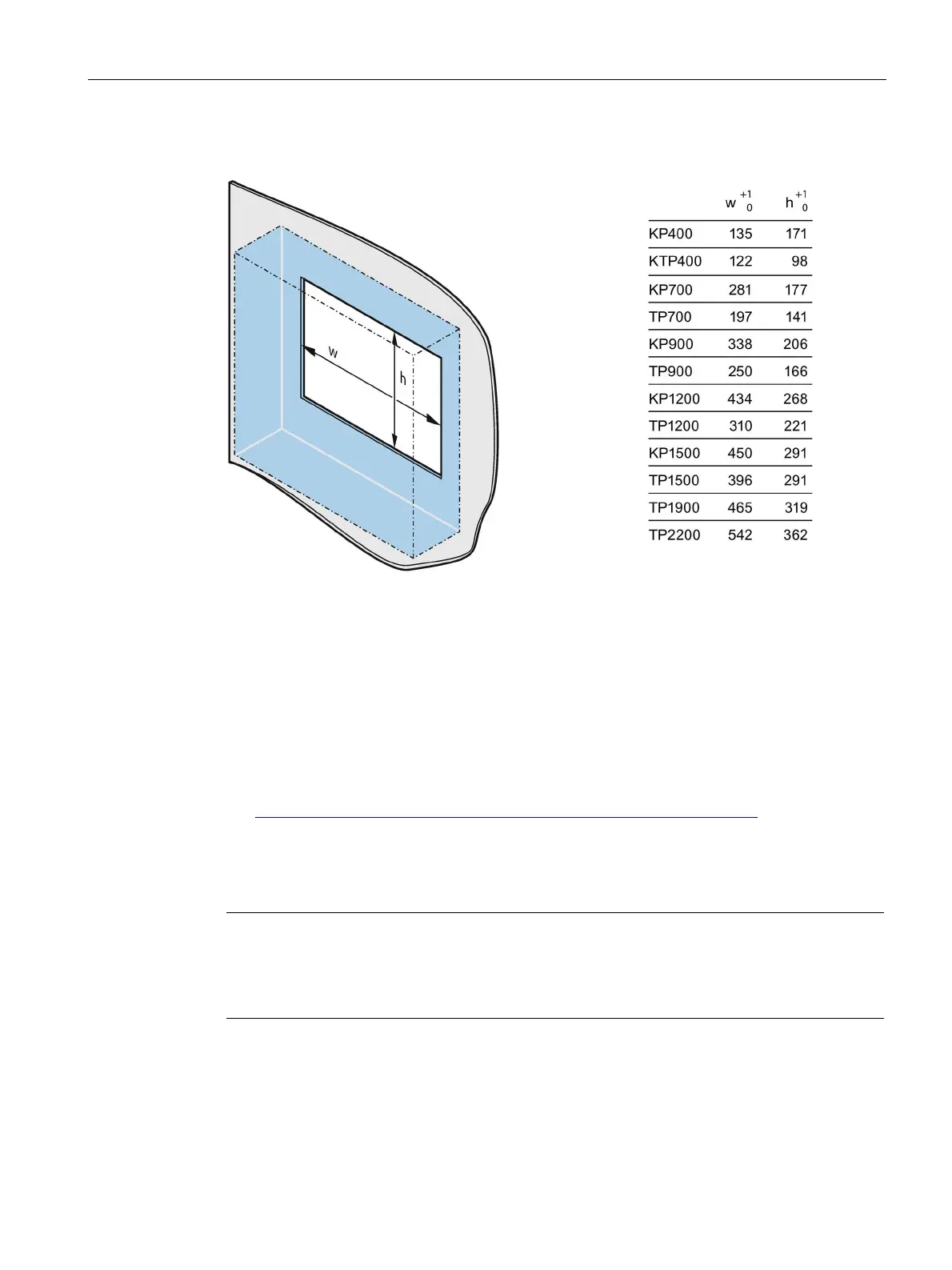

3.1 Preparing for installation
Comfort Panels
Operating Instructions, 08/2018, A5E36770603-AC
39
Proceed as follows:
1. Edit the template on a PC and then print it.
2. Apply a fixation spray film to the labeling strips.
The printout can be made water and smudge-proof with a fixation spray. The color printer
ink will not bleed onto the keyboard film as well.
3. Cut out the labeling strip.
4. Cut the corners at a 45° angle so that it is easier to slide the strip into the slot.
5. When the ink has dried, slide the labeling strips into the slot up to the end of the guide.
The figure below shows the guides and labeling strips for the bottom two rows of keys on the
KP1200 Comfort.
Guide; the maximum number of guides depends on the HMI device used
