Technical information

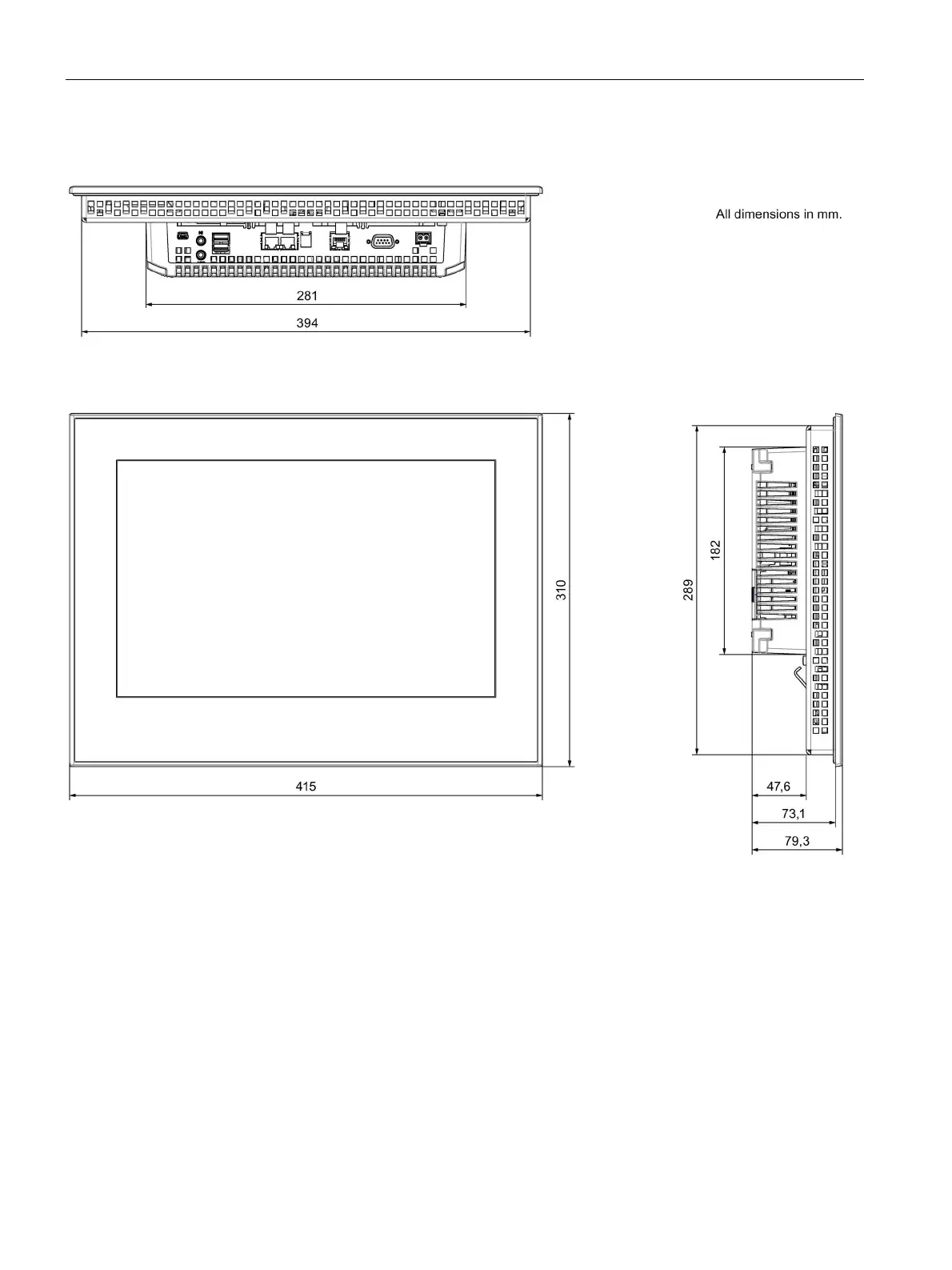

8.7 Dimension drawings
Comfort Panels
204 Operating Instructions, 08/2018, A5E36770603-AC
8.7.12
Dimension drawings of the TP1500 Comfort V2
