Technical information

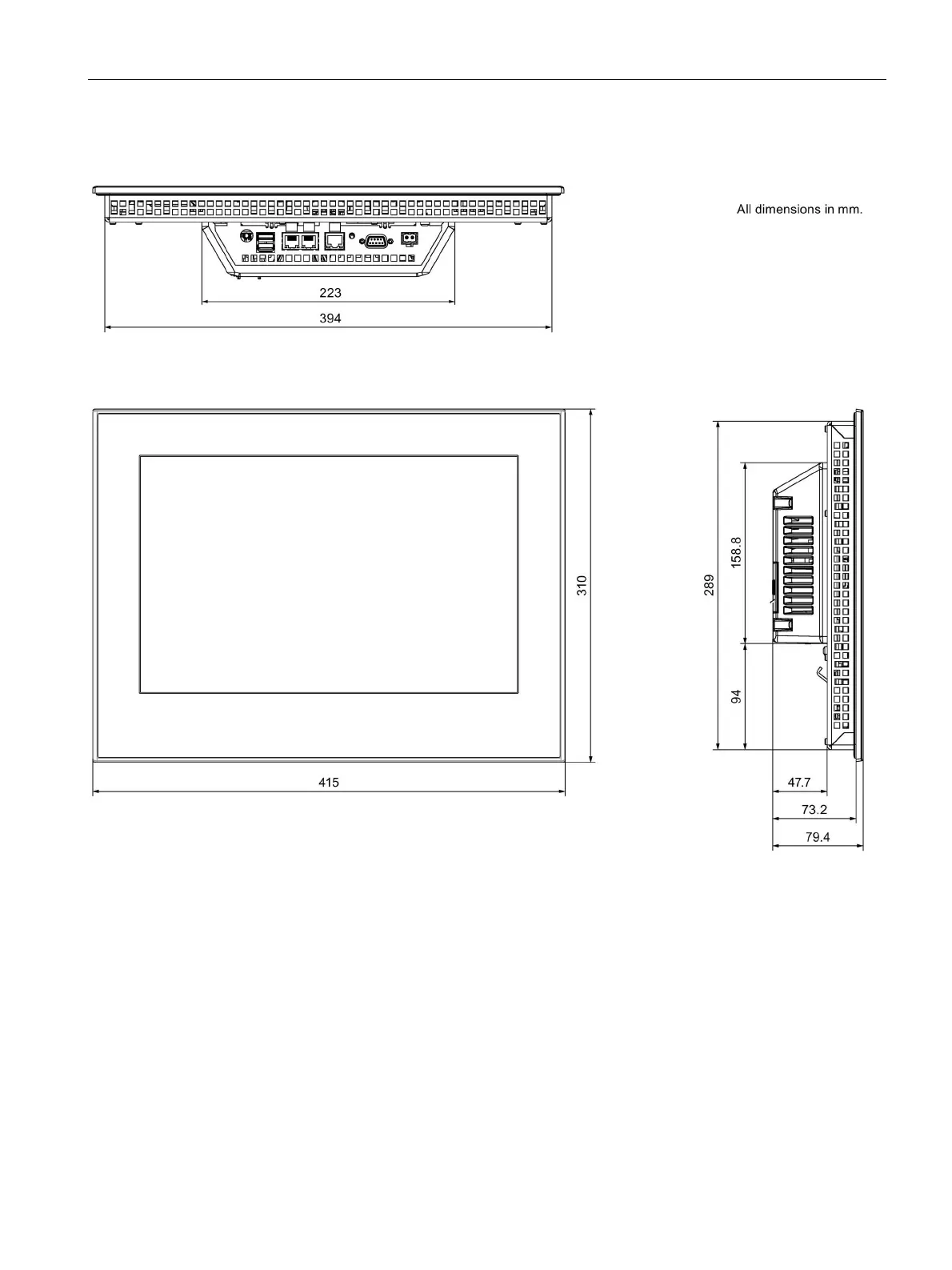

8.7 Dimension drawings
Comfort Panels
Operating Instructions, 08/2018, A5E36770603-AC
205
8.7.13
Dimension drawings of the TP1900 Comfort V1
