Mounting and connecting the device
3.1 Preparing for installation
Comfort Panels
36 Operating Instructions, 08/2018, A5E36770603-AC

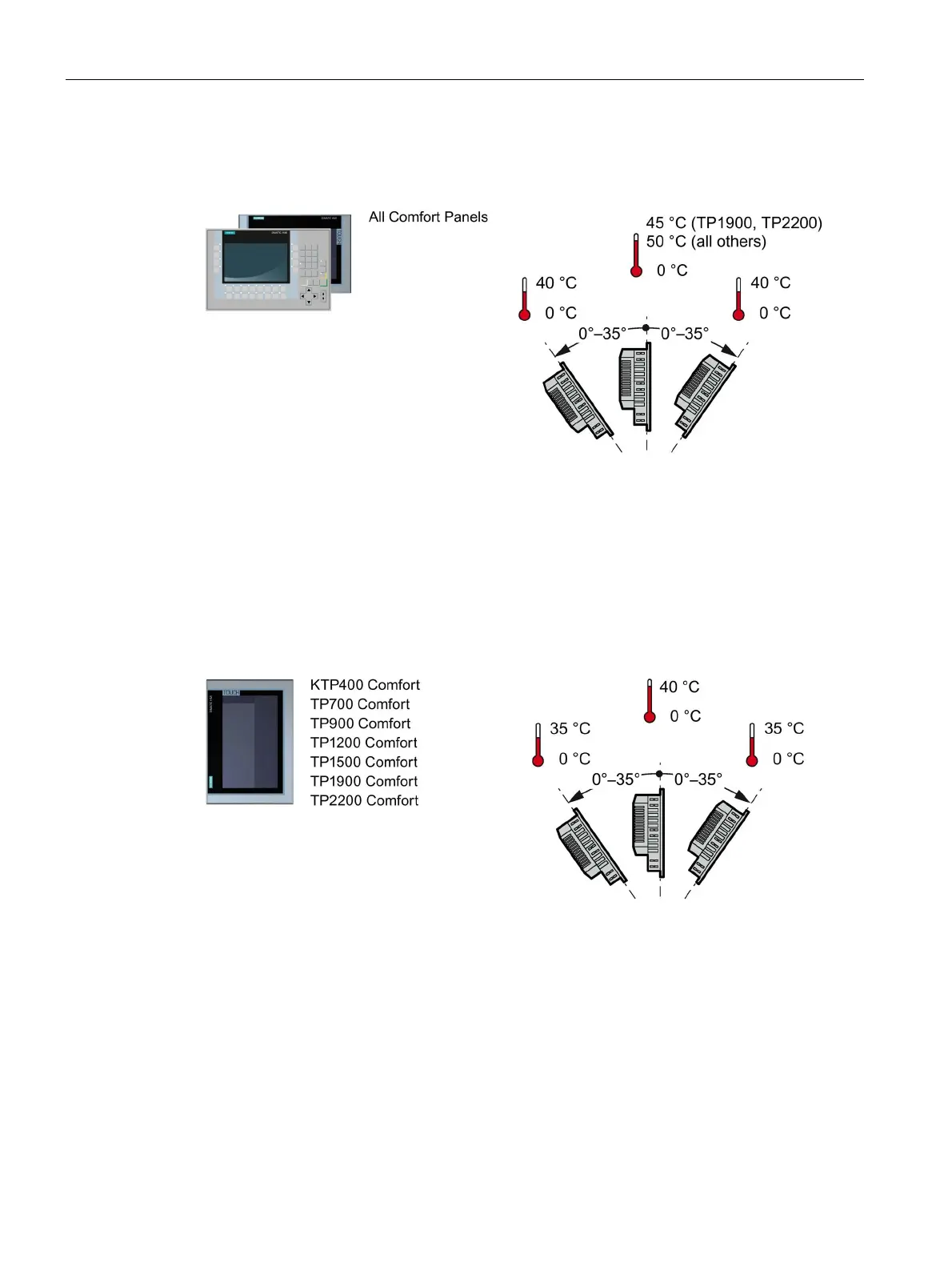

Mounting in portrait format
The Touch HMI devices are also suitable for mounting in portrait format. Select the
appropriate screen format during configuration.
The following clearances are required around the HMI device to ensure sufficient self-
ventilation:
● At least 15 mm to both the right and left of the mounting cutout (in x direction) to allow
for insertion of the mounting clips during installation
● At least 50 mm above and 50 mm below the mounting cutout (in the y direction) for
ventilation
● At least 10 mm behind the rear panel of the HMI device (in the z direction)
The following figure shows the clearances for mounting the KP700 Comfort in landscape and
portrait formats as an example:
Clearance for mounting in landscape format (all HMI devices)
Clearance for mounting in portrait format (Touch HMI devices only)
