Siemens SIMATIC IFP2200

Technical information
7.6 Interface description
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
106 Operating Instructions, 07/2016, A5E31298376-AF
Protection against foreign objects and water PRO device
Degree of protection
Explanation
All-round When mounted:
• IP65 according to IEC 60529
• Enclosure Type 4X / 12 (indoor use only) according to UL50
The degree of protection can only be guaranteed if the seals are completely flush at the
mechanical interfaces and the associated covers are closed.
Degree of pollution / overvoltage category according to IEC 61131
● Degree of pollution 2
● Overvoltage category II
7.6
Interface description
7.6.1

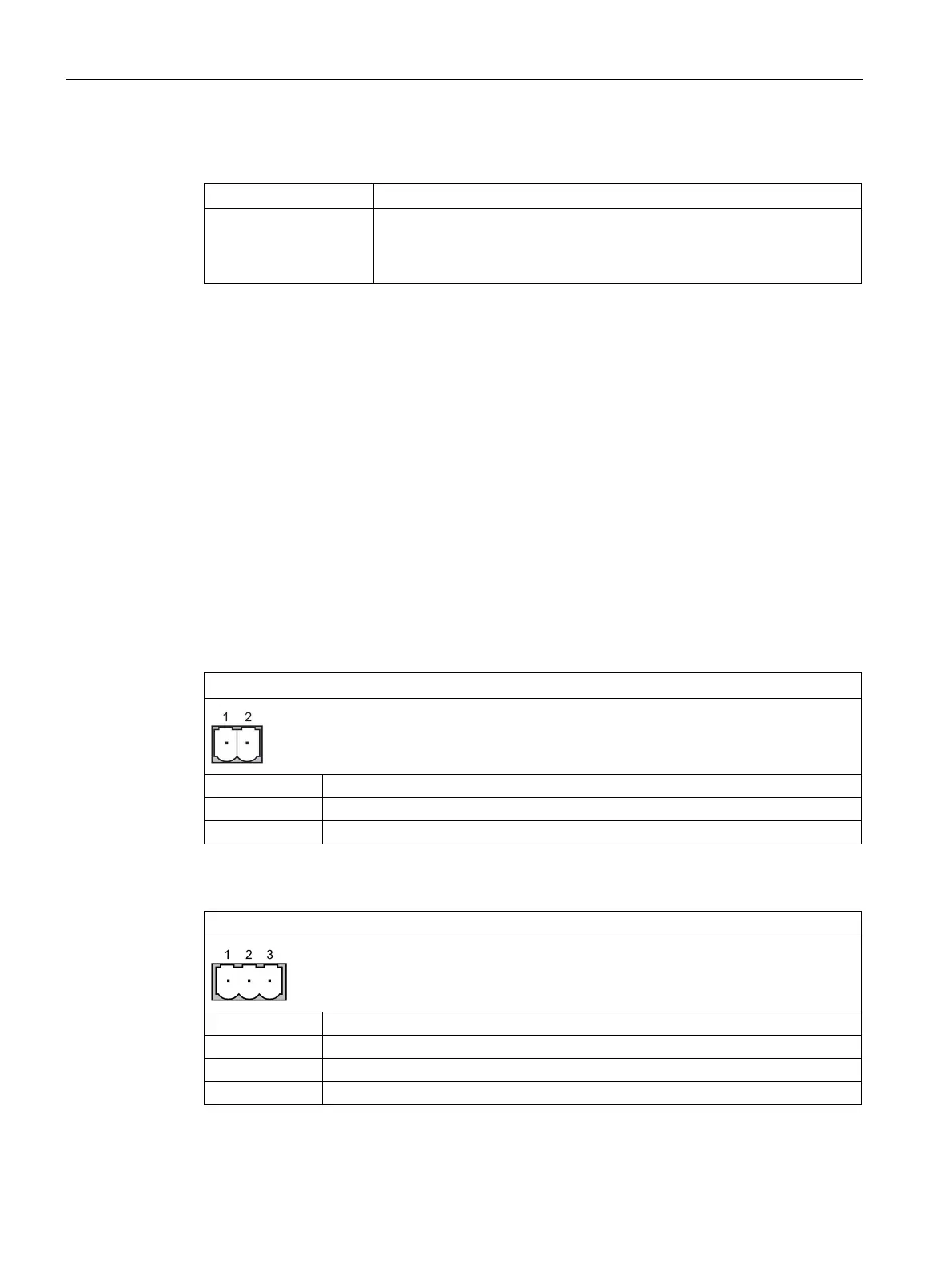

24 V DC Power Supply
Power supply 24 V DC 2-pin
Pin no.
Meaning
1
+24 V DC
2
GND
1
1
GND is internally connected to signal ground on DVI, for example, device ground and housing:
Power supply 24 V DC 3-pin
Pin no.
Meaning
1
+24 V DC
2
Ground
3
Protective conductor
