Installing and connecting the device
3.2 Installing the built-in unit
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
44 Operating Instructions, 07/2016, A5E31298376-AF

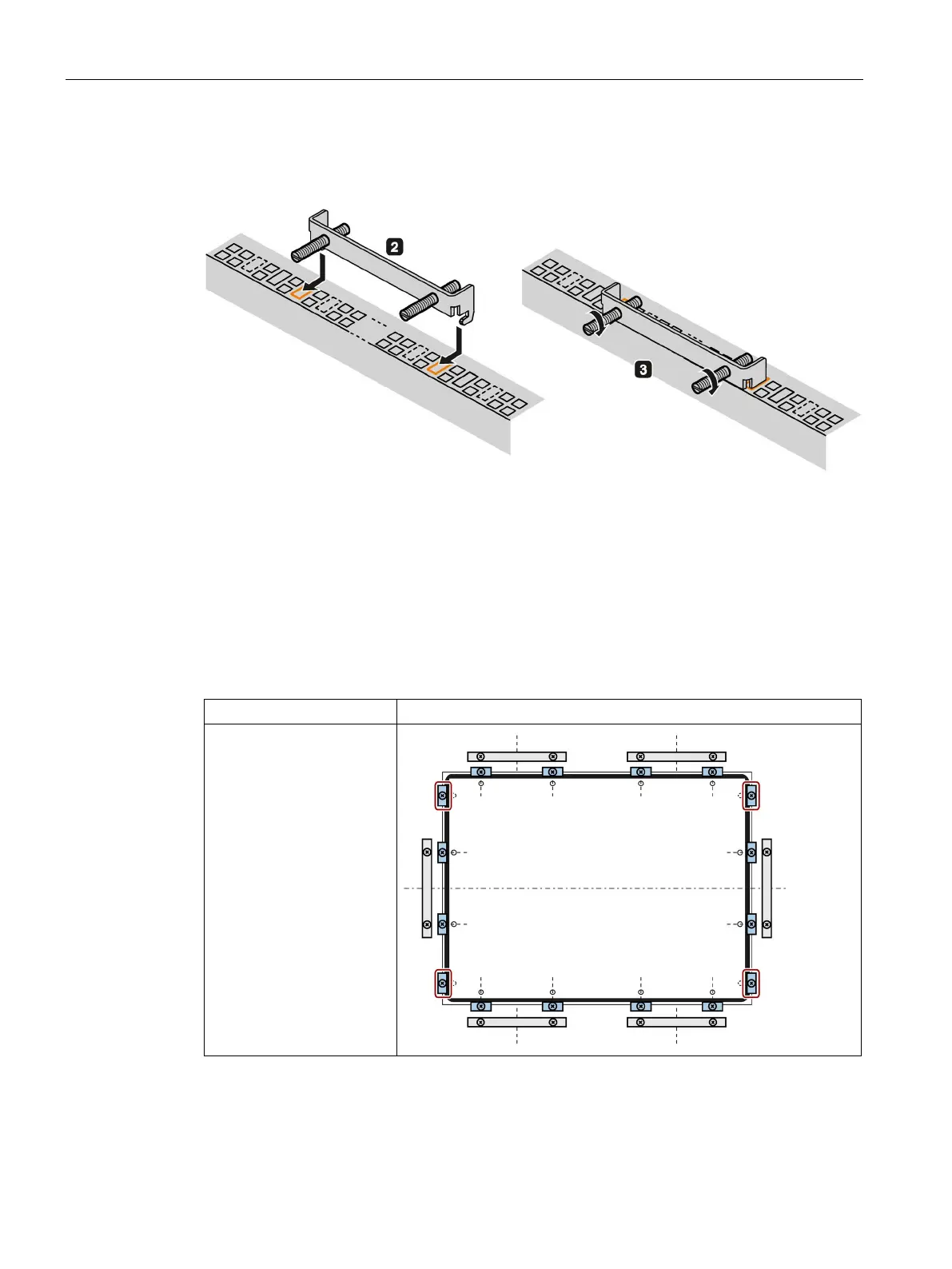

Mounting with optional mounting brackets
Mounting brackets can be used instead of mounting clips in steps 1 to 5:
Position of the mounting clips for IP66-complaint installation
Positions of the mounting clips
To achieve IP66 degree of protection instead of IP65 for a device with capacitive multi-touch
screen, fasten 4 additional mounting clips (available as accessories) at the positions marked
by the red boxes. The 15" display meets IP66 even without additional mounting clips.
Touch screen device with:
• 19" display
• 22" display
