1.3 Design of the built-in units
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
16 Operating Instructions, 07/2016, A5E31298376-AF
1.3.3
IFP1500 Touch/Key

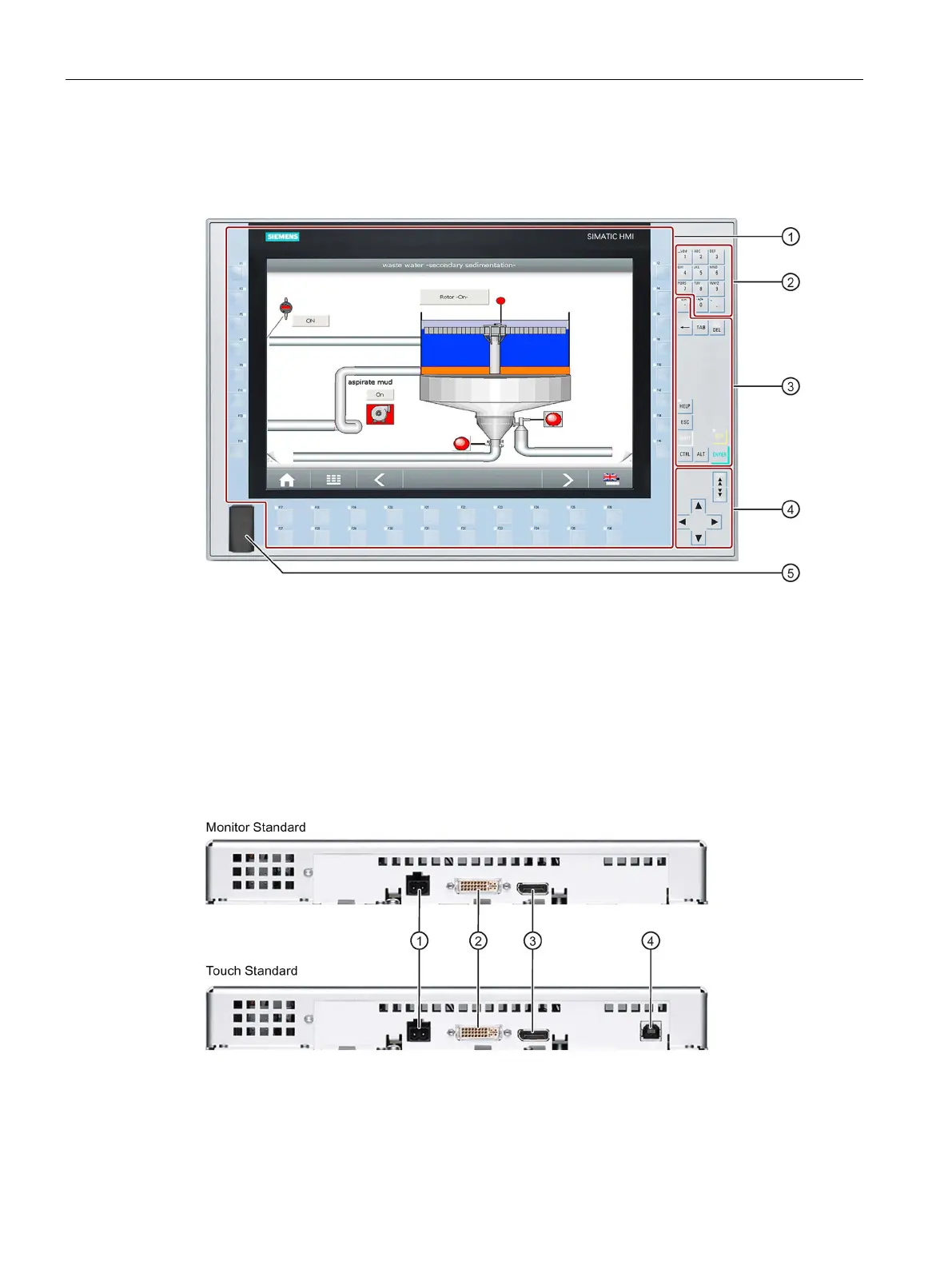

Front view
①
Display and function keys with LED
②
Alphanumeric keys
③
Control keys
④
Cursor keys
⑤
USB port
1.3.4
Interfaces
1.3.4.1
Standard versions
①
X80 connector for 24 V DC power supply
②
X71 DVI-D interface
③
X70 DisplayPort interface
④
X60 USB Type B
