1.3 Design of the built-in units
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
Operating Instructions, 07/2016, A5E31298376-AF
17
1.3.4.2

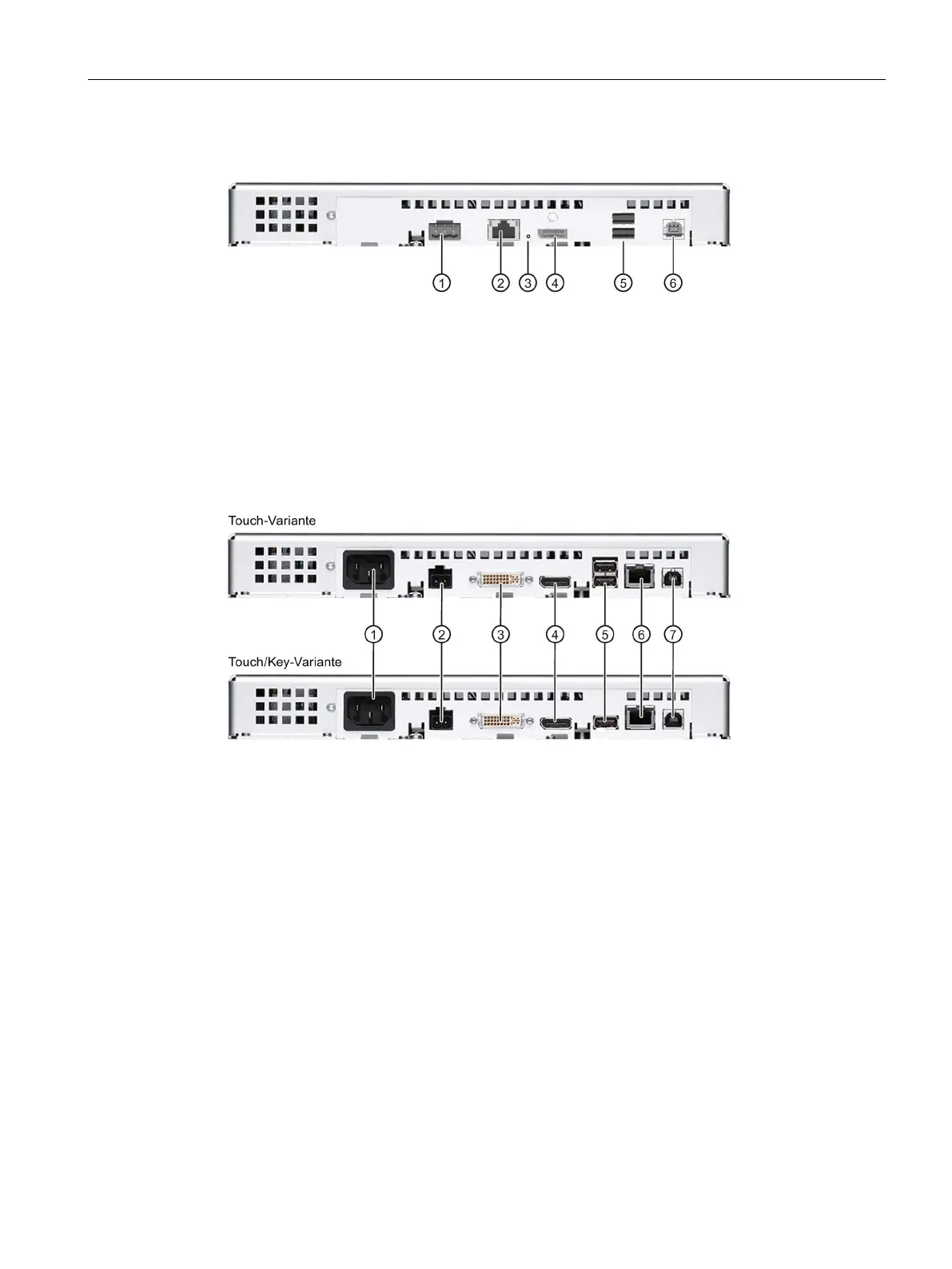

Ethernet Monitor devices
①
X80 connector for 24 V DC power supply
②
X1 Ethernet port
③
Reset button
④
X70 DisplayPort interface
⑤
X61/X62 USB Type A
⑥
X60 USB Type B
1.3.4.3
Extended versions
①
Connection for 100 to 240 V AC power supply
⑤
X61/X62 USB Type A
②
X80 connector for 24 V DC power supply
⑥
X63 USB link interface
③
X71 DVI-D interface
⑦
X60 USB Type B
④
X70 DisplayPort interface
