Siemens SIMATIC IFP2200

Technical information
7.6 Interface description
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
108 Operating Instructions, 07/2016, A5E31298376-AF
7.6.2

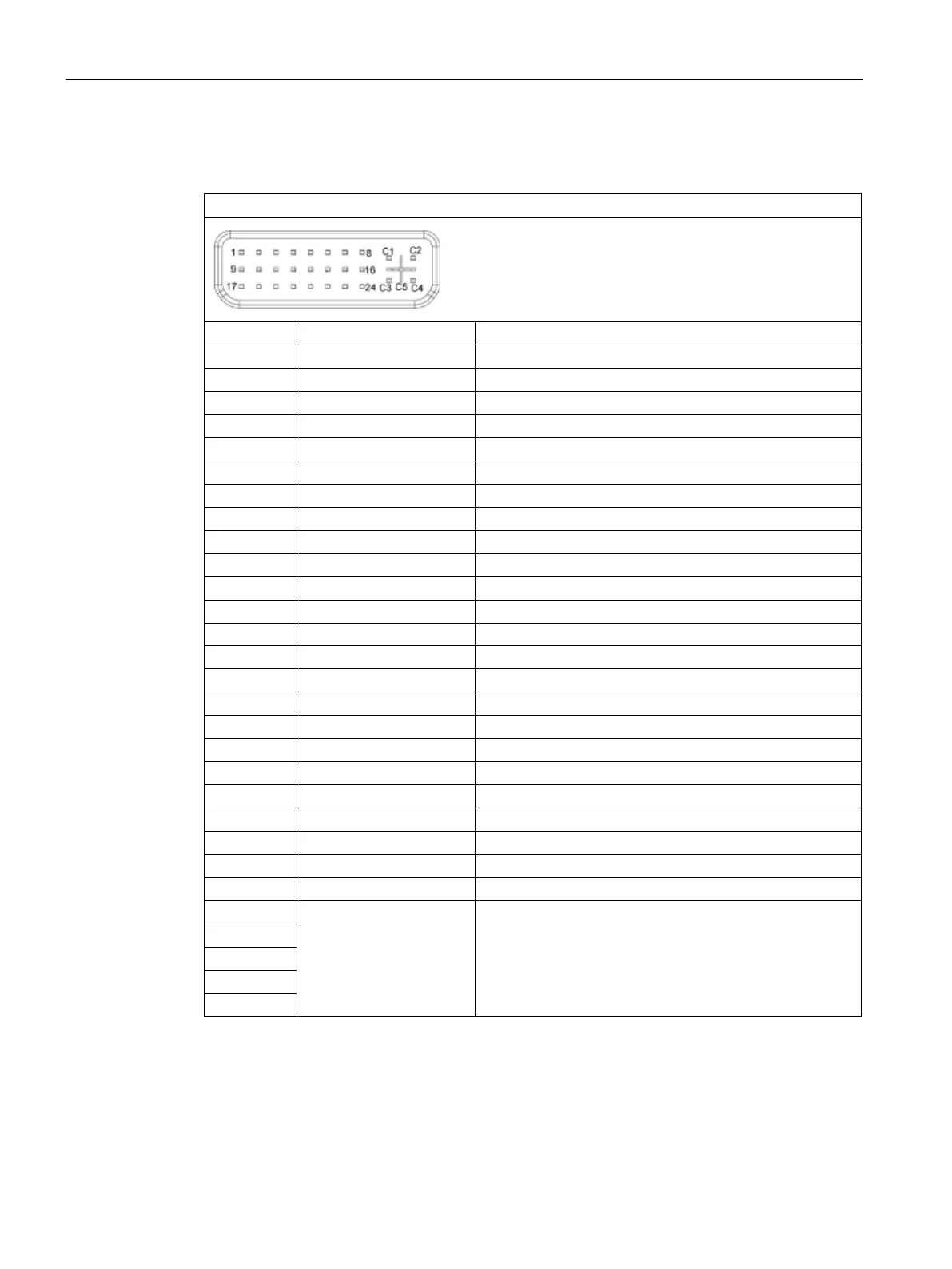

DVI-D interface
DVI-D interface
Pin no.
Abbreviation
Signal
1
TX2N
TDMS data 2-
2
TX2P
TDMS data 2+
3
GND
TMDS data shield 2, ground
4
NC
Not assigned
5
NC
Not assigned
6
DDC CLK
DDC clock
7
DDC CLK
DDC data
8
NC
Not assigned
9
TX1N
TDMS data 1-
10
TX1P
TDMS data 1+
11
GND
TMDS data shield 1, ground
12
NC
Not assigned
13 NC Not assigned
14
+5 V
+5 V power
15 GND Ground
16
MONDET
Hotplug detect
17
TX0N
TDMS data 0-
18
TX0P
TDMS data 0+
19
GND
TMDS data shield 0, ground
20
NC
Not assigned
21
NC
Not assigned
22
GND
TMDS clock shield, ground
23
TXCP
TDMS clock +
24
TXCN
TDMS clock -
C1
NC Not assigned
C2
C3
C4
C5
