Siemens SIMATIC IFP2200

Overview
1.3 Design of the built-in units
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
Operating Instructions, 07/2016, A5E31298376-AF
15
1.3.2
IFP1500/1900/2200 Touch
This section describes the design of the monitor and touch devices, using the
IFP1500 Touch as an example.

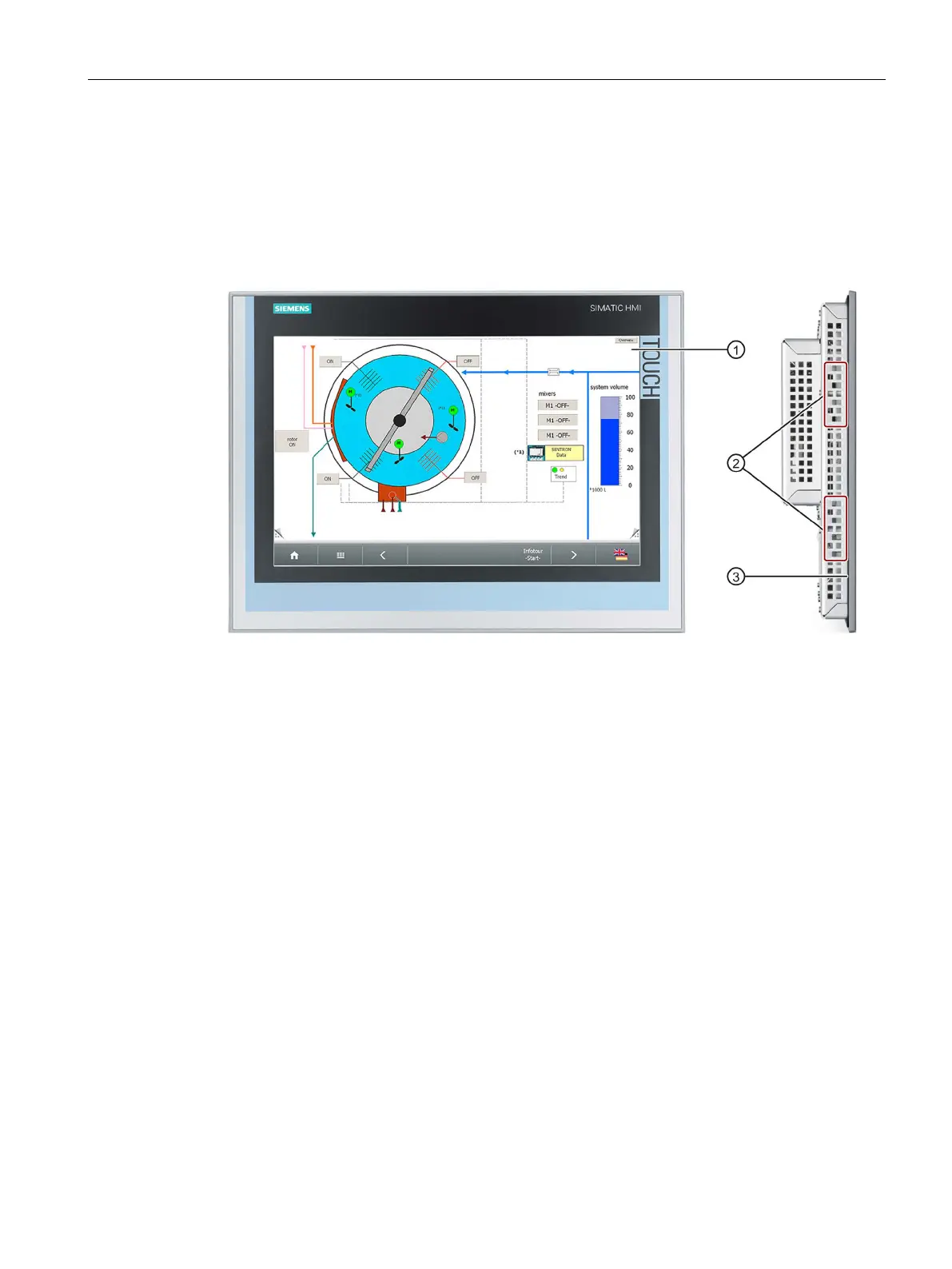

Front view and side view
①
Display/touch screen
②
Recesses for mounting clips
③
Mounting seal
Rear view
See section "IFP1500/1900/2200 Multitouch".
