Siemens SIMATIC IFP2200

Technical information
7.6 Interface description
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
Operating Instructions, 07/2016, A5E31298376-AF
109

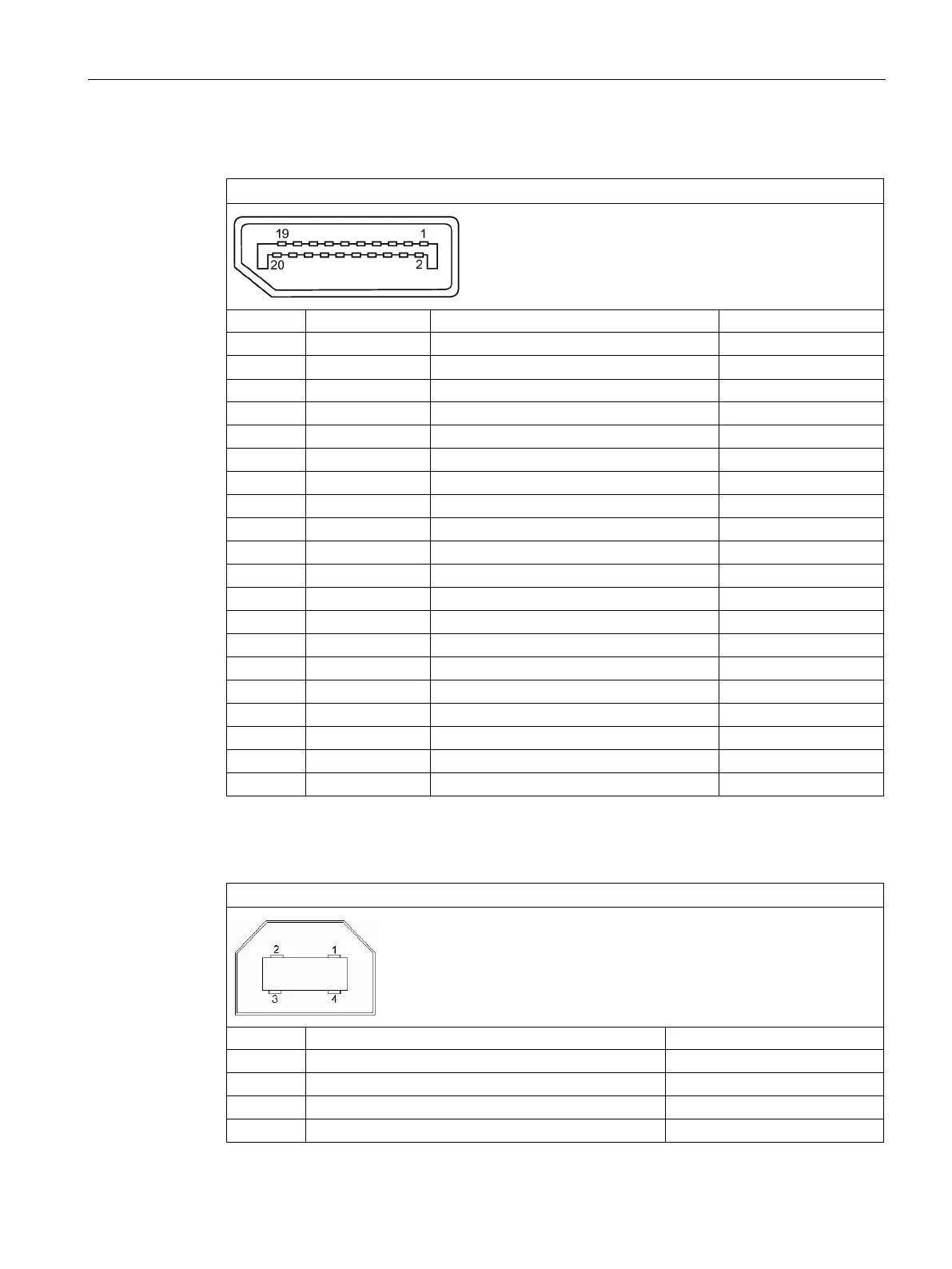

7.6.3
DisplayPort
DisplayPort interface
Pin no.
Abbreviation
Meaning
Input/output
1
ML_Lane3-
DP data 3-
Input
2 GND Ground -
3
ML_Lane3+
DP data 3+
Input
4
ML_Lane2-
DP data 2-
Input
5
GND
Ground
-
6
ML_Lane2+
DP data 2+
Input
7
ML_Lane1-
DP data 1-
Input
8
GND
Ground
-
9
ML_Lane1+
DP data 1+
Input
10
ML_Lane0-
DP data 0-
Input
11
GND
Ground
-
12
ML_Lane0+
DP data 0+
Input
13
CONFIG1 CAD
Cable Adapter Detect
Input
14
CONFIG2
Ground (PullDown)
-
15
AUX_CH+
Auxiliary channel+
Bidirectional
16
GND
Ground
-
17
AUX_CH-
Auxiliary channel-
Bidirectional
18
HPD
Hot Plug Detect
Input
19
GND
Ground
-
20
DP_PWR
+3.3 V (fused)
Input
7.6.4
USB interface, Type B
USB port, Type B
Pin no.
Abbreviation
Signal
1
VCC
+ 5 V (fused)
2
- Data
Data channel
3
+ Data
Data channel
4
GND
Ground
