Overview
1.4 Design of the PRO devices
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
Operating Instructions, 07/2016, A5E31298376-AF
19

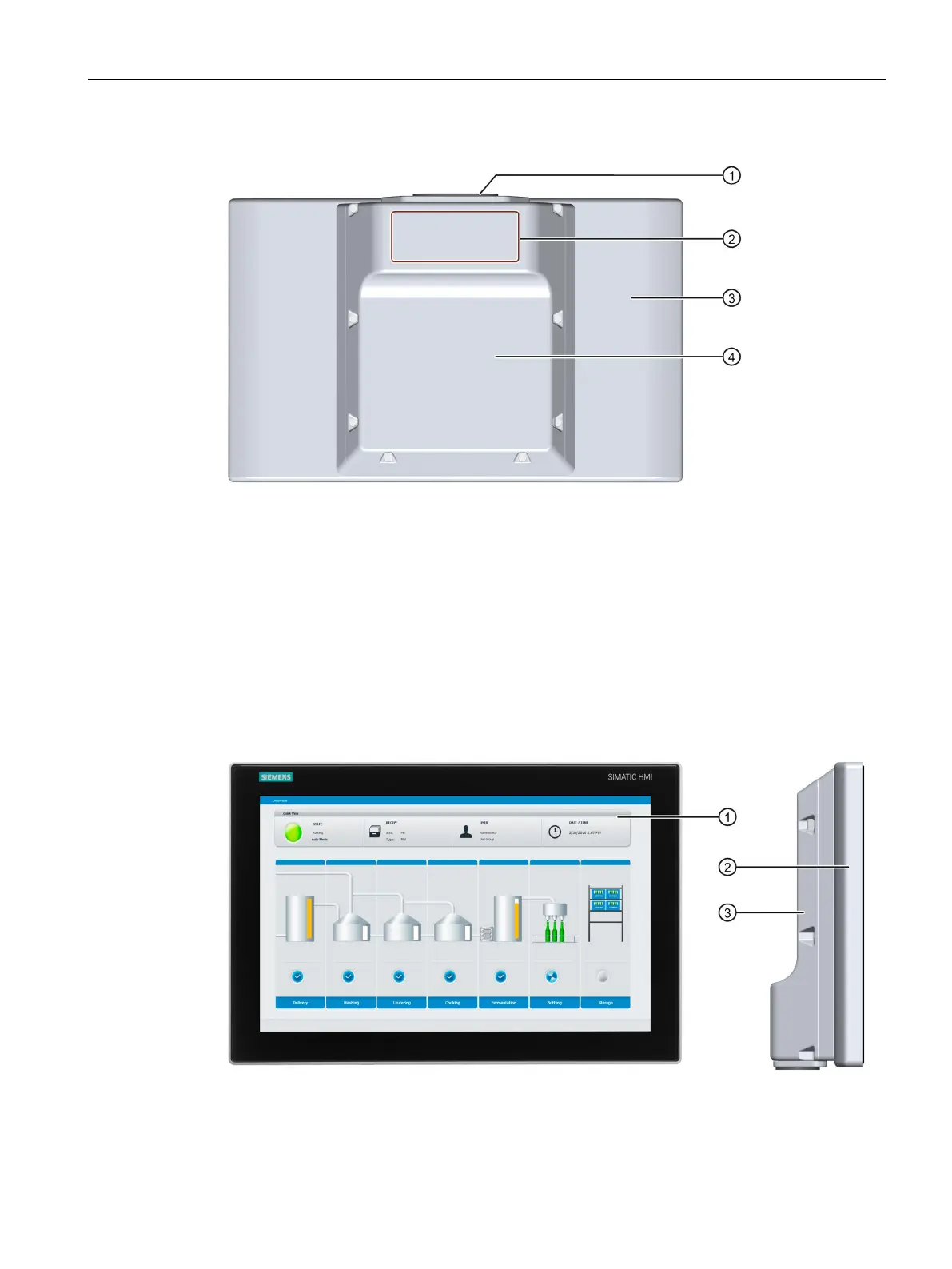

Rear view
①
Mechanical interface for fastening
②
Rating plate
③
Enclosure
④
Backplane cover
1.4.2
PRO devices, suitable for pedestal and extension components
The following figures shows the design of the devices using IFP1900 PRO suitable for
pedestal and extension components as an example.
Front view and side view
①
Display with touch screen
②
Enclosure
③
Backplane cover
