Maintaining and servicing your device
6.2 Ethernet Monitors - Diagnostics and reset
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
74 Operating Instructions, 07/2016, A5E31298376-AF
Ethernet Monitors - Diagnostics and reset
6.2.1

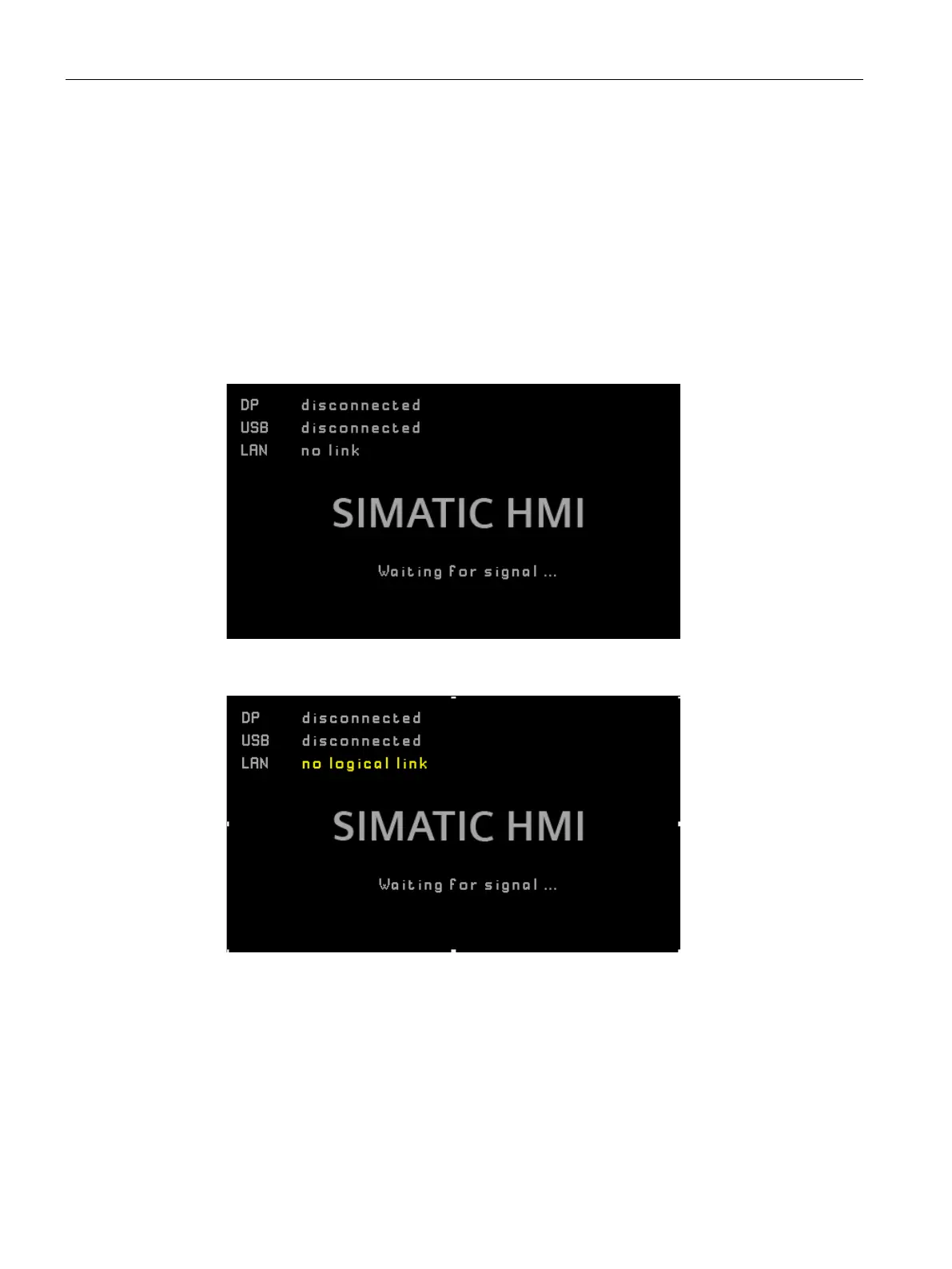

The diagnostics screen shows information on the system state of the Ethernet Monitor when
no picture is displayed. The diagnostics screen is not displayed permanently; it alternates
with a black screen.
Examples:
● The Ethernet Monitor is not connected to the PC:
● The Ethernet Monitor is connected to the PC with a LAN cable, but a data connection
cannot be established:
