1.4 Design of the PRO devices
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
22 Operating Instructions, 07/2016, A5E31298376-AF

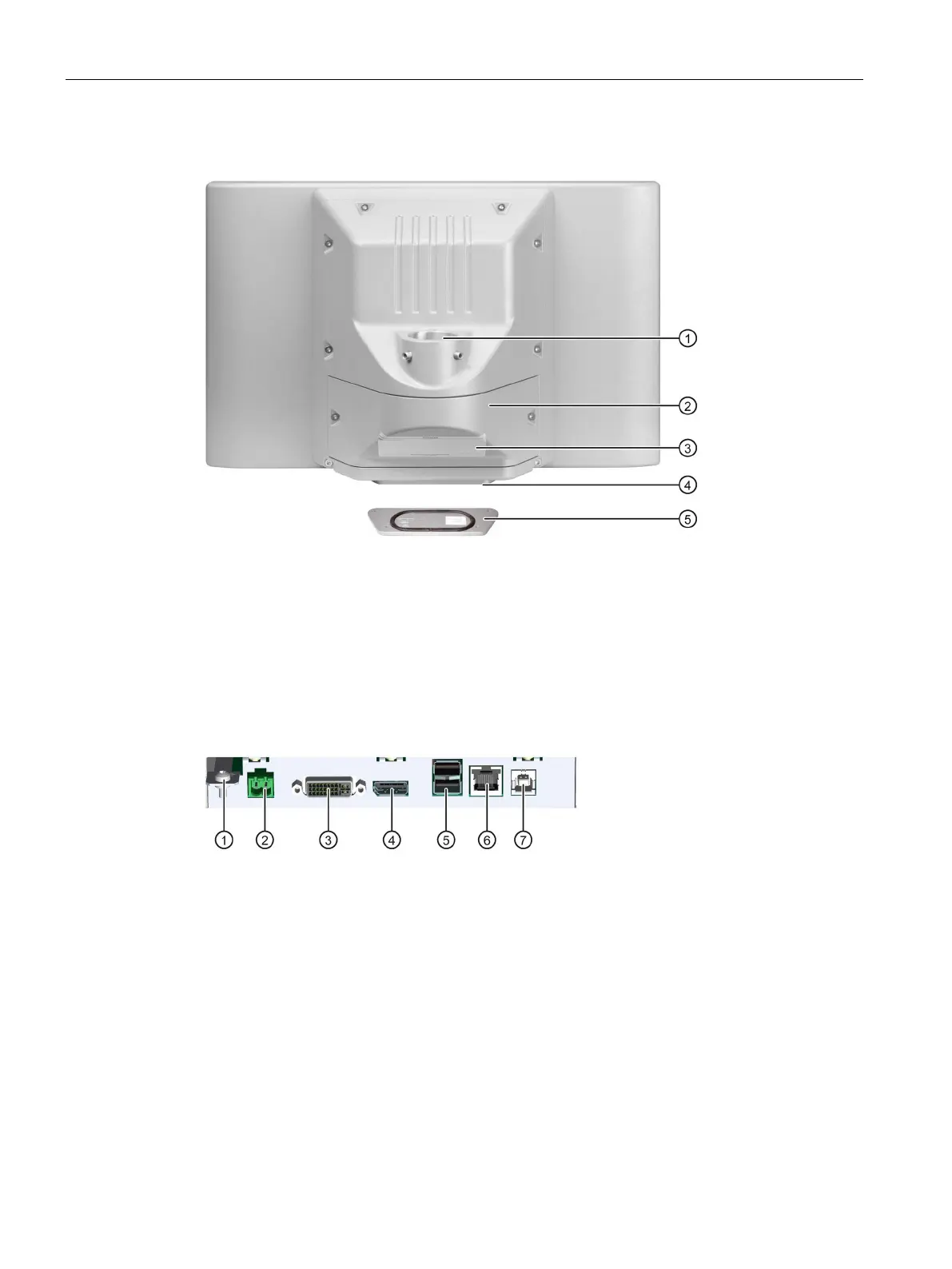

Rear view
①
Mechanical interface for fastening (round tube)
②
Terminal compartment cover
③
Nameplate
④
Mechanical interface below
⑤
Lower cover, included in the product package
1.4.4
Interfaces
①
Protective conductor terminal
⑤
X61/X62 USB Type A
②
X80 connector for 24 V DC power supply
⑥
X63 USB link interface
③
X71 DVI-D interface
⑦
X60 USB Type B
④
X70 DisplayPort interface
