Overview
1.4 Design of the PRO devices
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
Operating Instructions, 07/2016, A5E31298376-AF
21
PRO devices, suitable for support arm and extension components

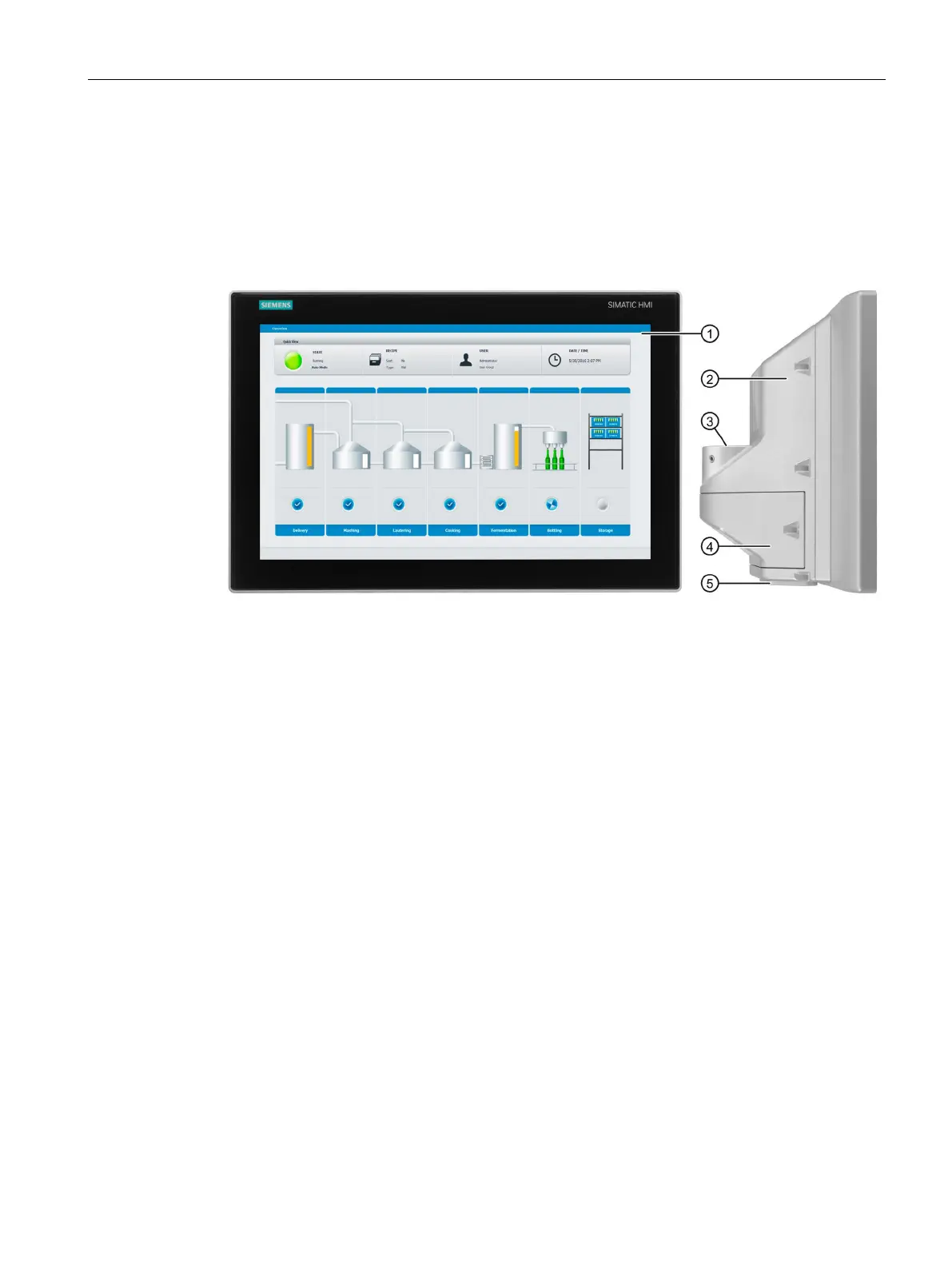

The following figures show the design of the devices using IFP1900 PRO suitable for support
arm and extension components as an example.
Display with touch screen
Mechanical interface for fastening (round tube)
Terminal compartment cover
Mechanical interface below
