1.3 Design of the built-in units
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
Operating Instructions, 07/2016, A5E31298376-AF
13
1.3
Design of the built-in units
1.3.1
IFP1500/1900/2200 Multitouch, IFP1900/2200 ETH
This section describes the design of the multi-touch devices, using the IFP1900 Multitouch
as an example.

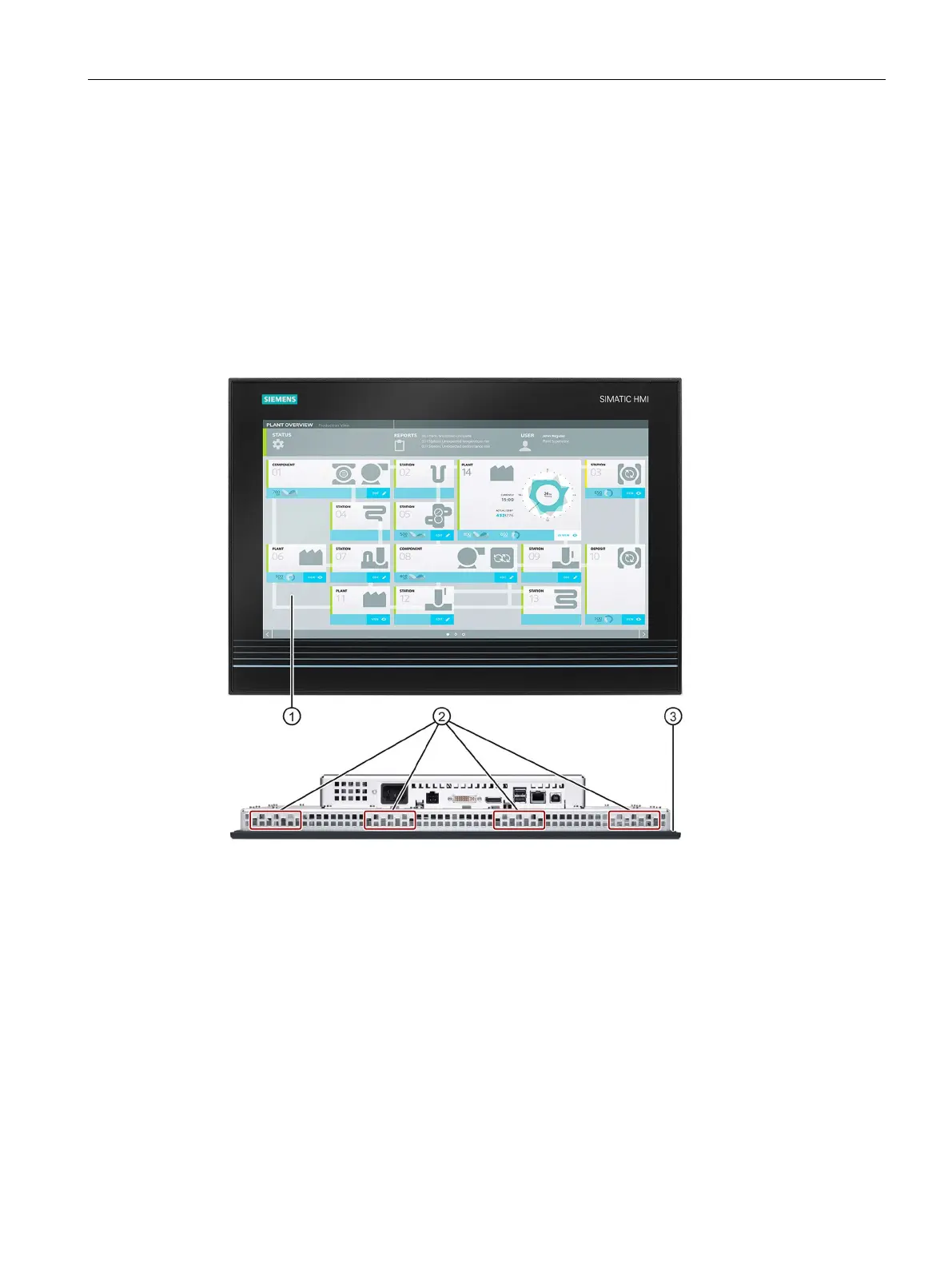

Front view and bottom view
①
Display/touch screen
②
Recesses for mounting clips
③
Mounting seal
