Siemens SIMATIC IFP2200

Installing and connecting the device
3.1 Preparing for installation
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
36 Operating Instructions, 07/2016, A5E31298376-AF
3.1.2.2
Checking clearances
The following clearances are required around the device to ensure adequate self-ventilation:
● At least 15 mm to the right and left of the mounting cutout (in x direction) to allow for
insertion of the mounting clips during installation
● At least 50 mm above and below the mounting cutout (in y direction) for ventilation
● At least 10 mm behind the rear panel of the device (in z direction)

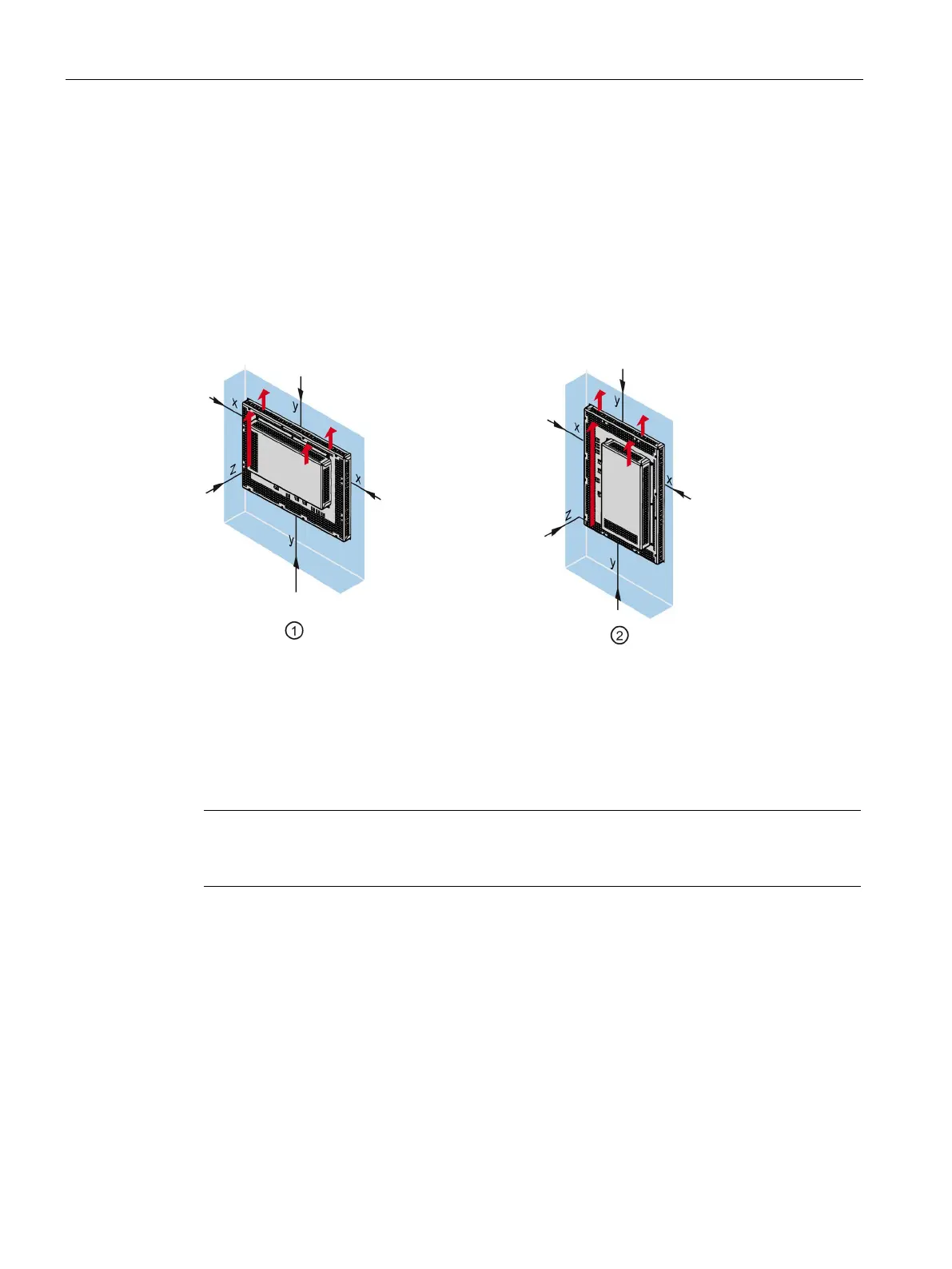

The figure below shows the clearances required with horizontal and vertical installation of the
device:
①
Clearance for horizontal installation (all devices)
②
Clearance for vertical installation (monitor and touch versions only)
x
At least 15 mm distance
y
At least 50 mm distance
z
At least 10 mm distance
Note
Ensure that the maximum ambient temperature is not exceeded when mounting the device
in a cabinet and especially in a closed enclosure.
