1.4 Design of the PRO devices
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
18 Operating Instructions, 07/2016, A5E31298376-AF
1.4
Design of the PRO devices
1.4.1
PRO devices, suitable for support arm
The following figures show the design of the devices using IFP1900 PRO suitable for support
arm as an example.

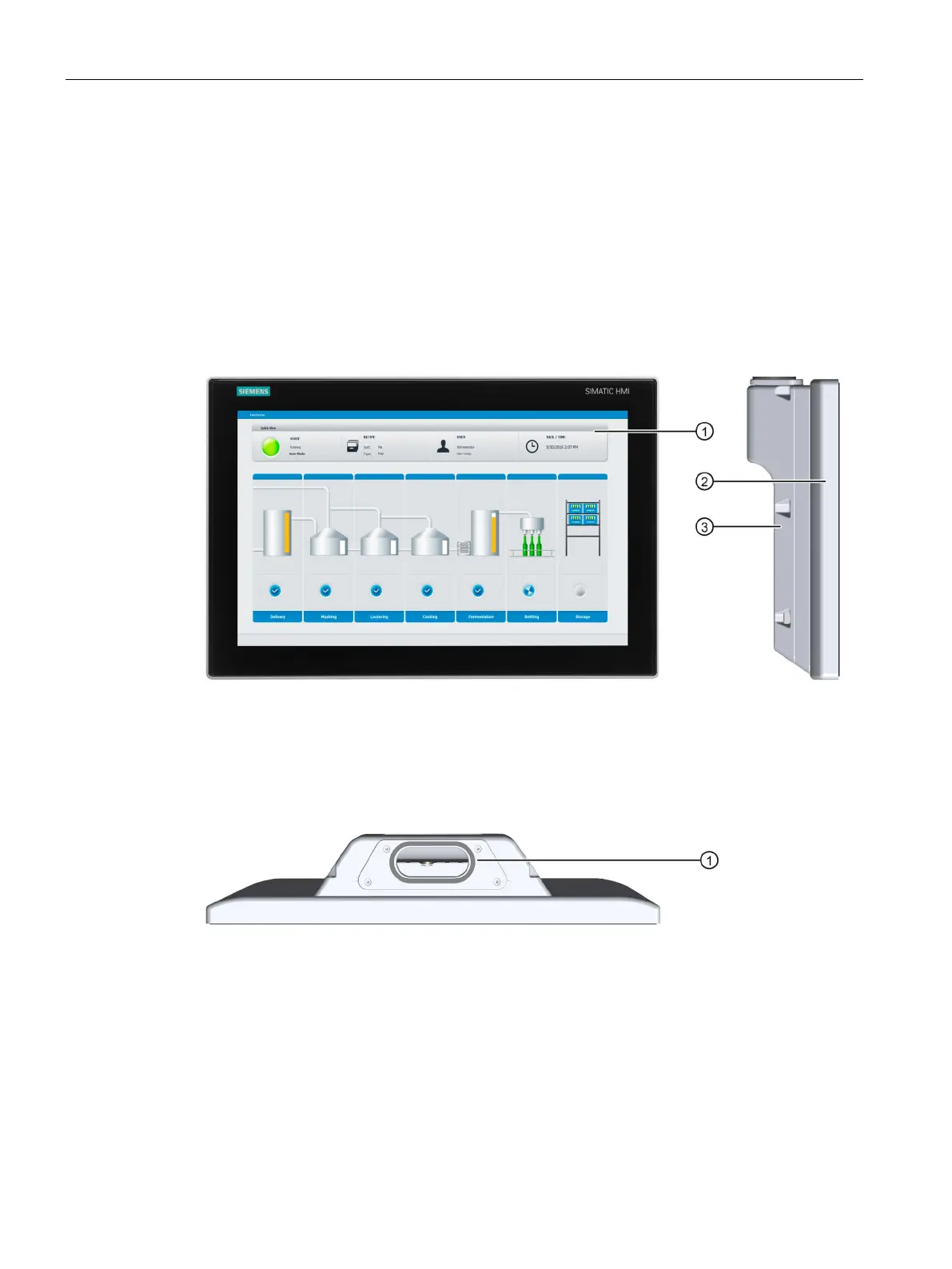

Front view and side view
①
Display with touch screen
②
Enclosure
③
Backplane cover
Top view
①
Mechanical interface for fastening
