Installing and connecting the device
3.4 Connecting the device
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
58 Operating Instructions, 07/2016, A5E31298376-AF
Connecting IFP Standard, Extended and PRO to a PC
3.4.4.1
Overview

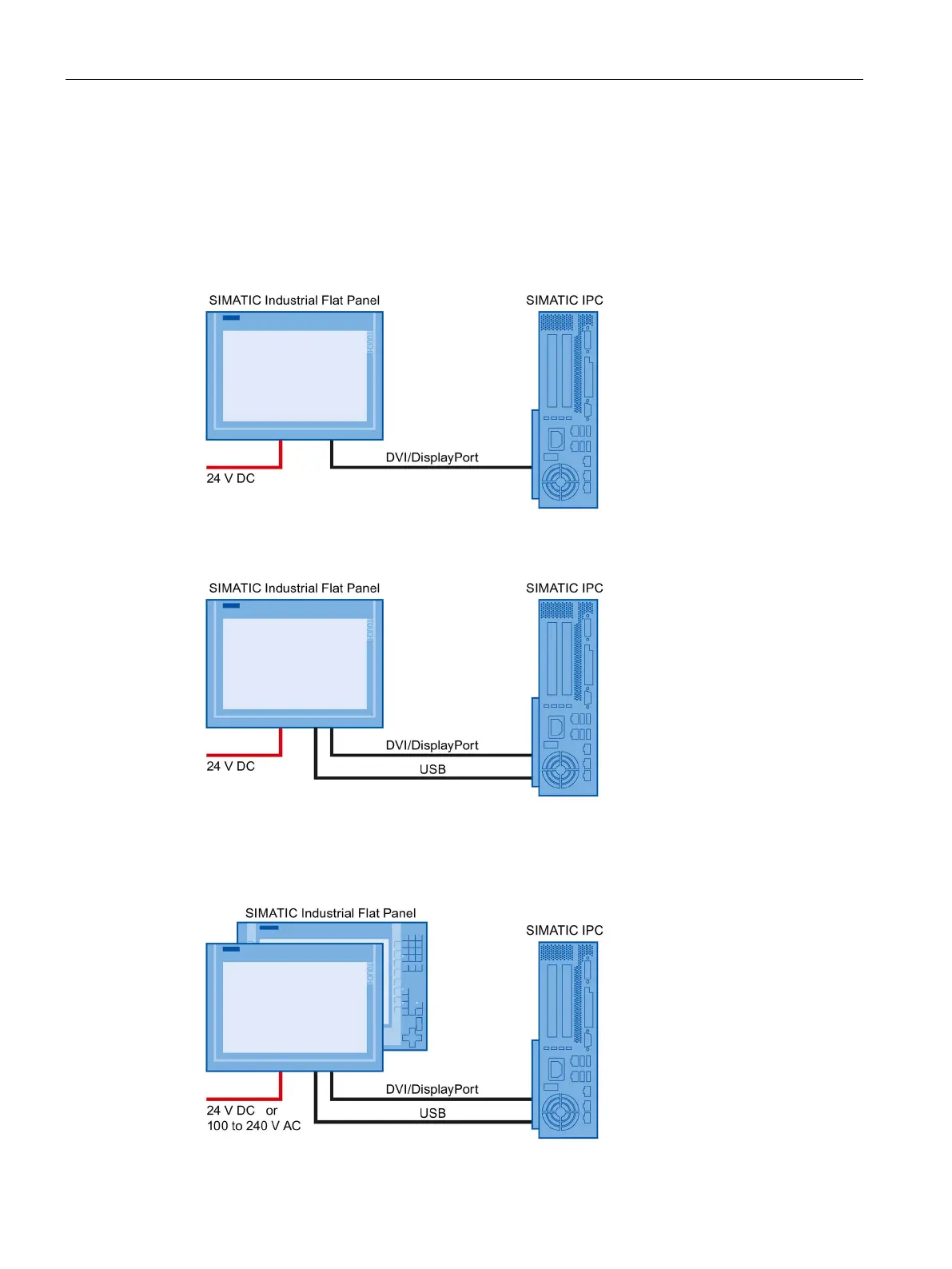

Connection diagram for standard monitor version
Connection diagram for standard touch version
Connection diagram for Extended versions and PRO devices (24 V DC only)
Distance up to 5 meters
