Installing and connecting the device
3.4 Connecting the device
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
Operating Instructions, 07/2016, A5E31298376-AF
57
120 V power supply
Use a flexible cable with the following characteristics:
UL approval
CE marking
Type SJT with three conductors
At least 18 AWG (0.75 mm
2
) conductor cross-section
Maximum 4.5 m length
Parallel grounded safety plug 15 A, min. 125 V
230 V power supply
Use a flexible cable with the following characteristics:
UL approval
CE marking
Type SJT with three conductors
At least 18 AWG (0.75 mm
2
) conductor cross-section
Maximum 4.5 m length
Tandem grounded safety plug 15 A, min. 250 V
Procedure

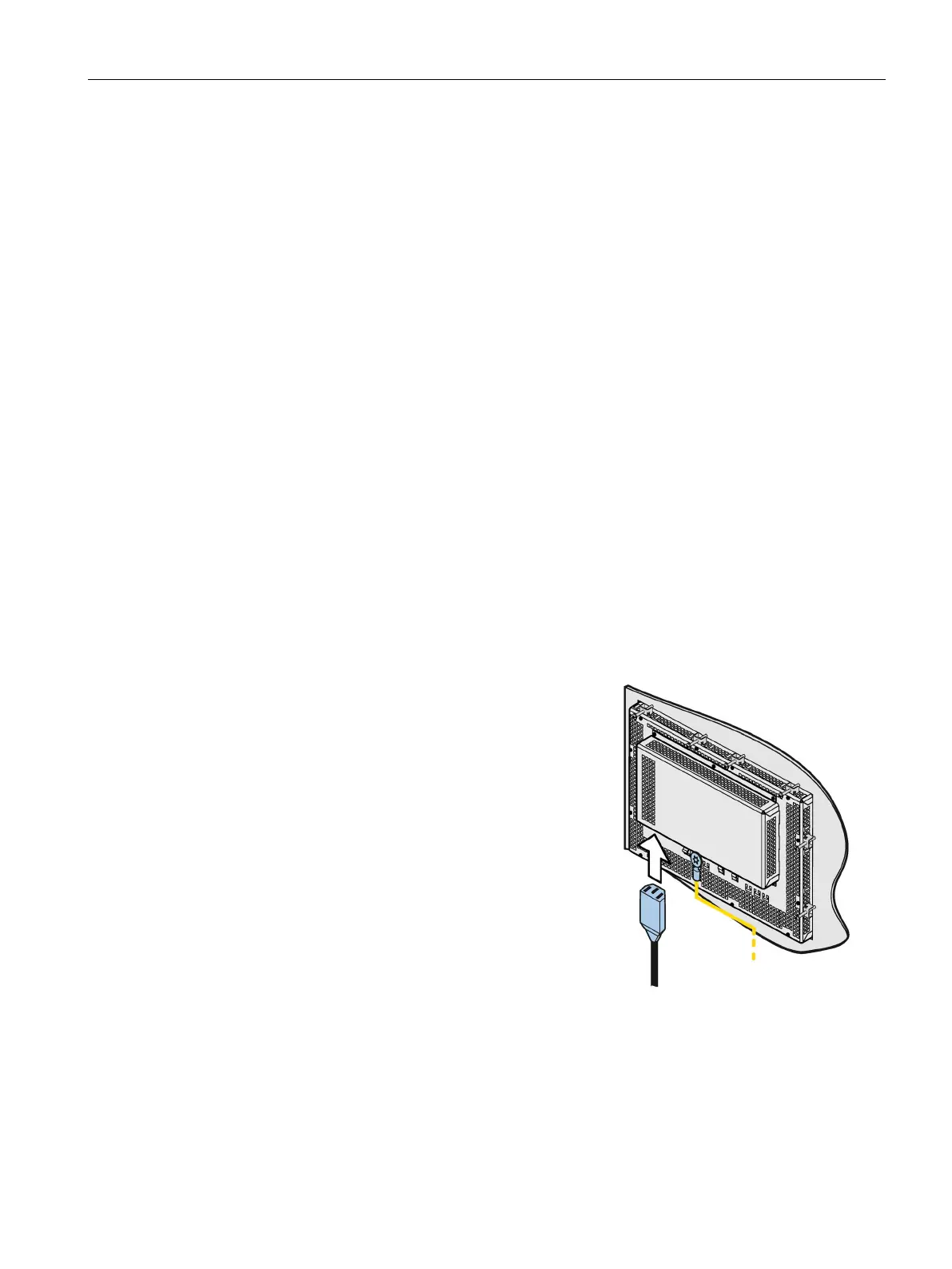

Plug the connector of the supplied power
supply cable into the AC power supply
connector of the device.
