Technical information
7.3 Dimension drawings
Industrial Flat Panel IFP1500, IFP1900, IFP2200, IFP1900 PRO, IFP2200 PRO, IFP1900 ETH, IFP2200 ETH
Operating Instructions, 07/2016, A5E31298376-AF
97

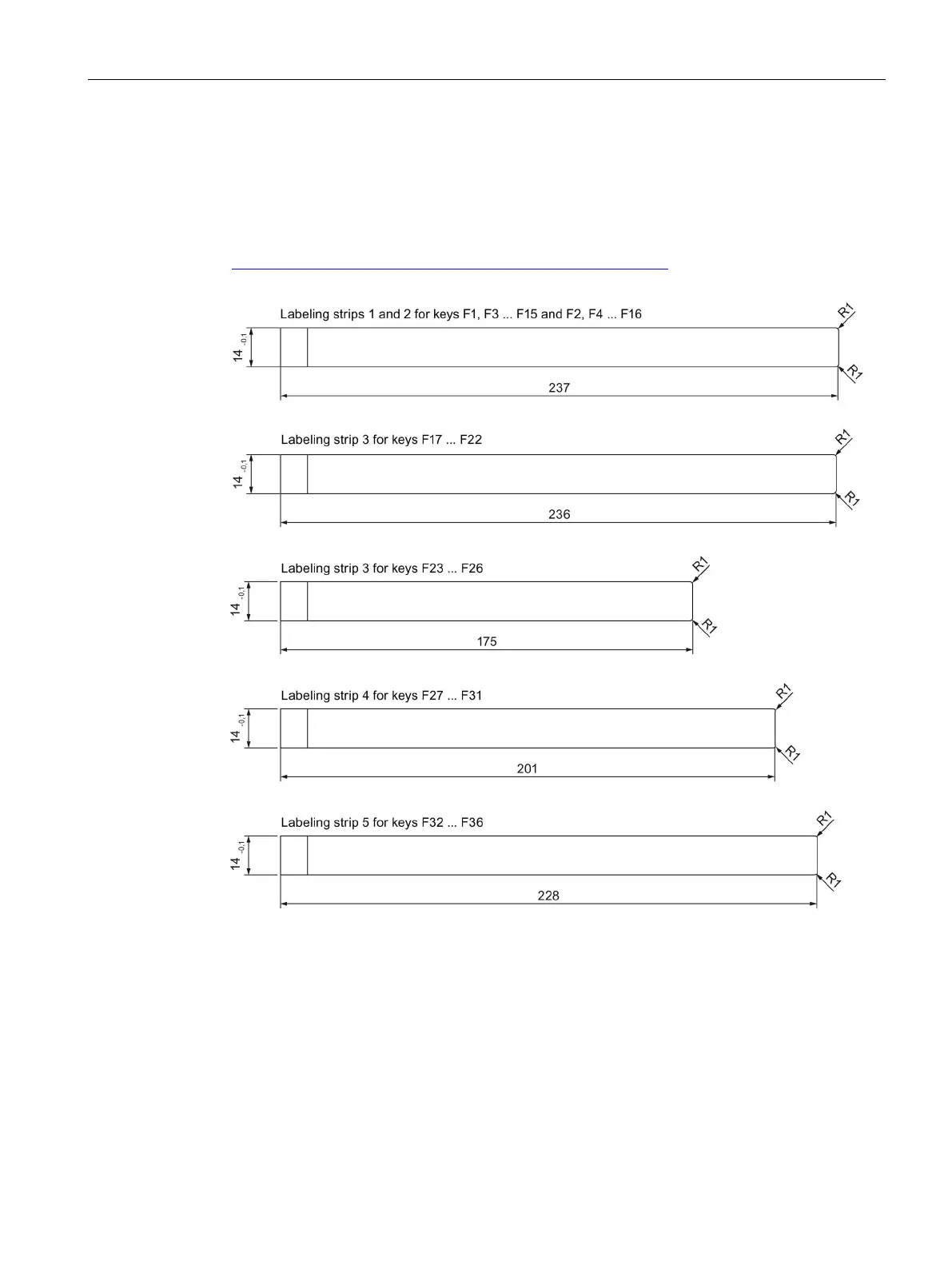

Dimensions for labeling strips
This section contains the dimensions of the labeling strips for 15" widescreen devices.
Labeling strip templates are available in a Word document on the Internet at:
Labeling strips for 15" widescreen
(http://support.automation.siemens.com/DE/view/en/59000814
)
